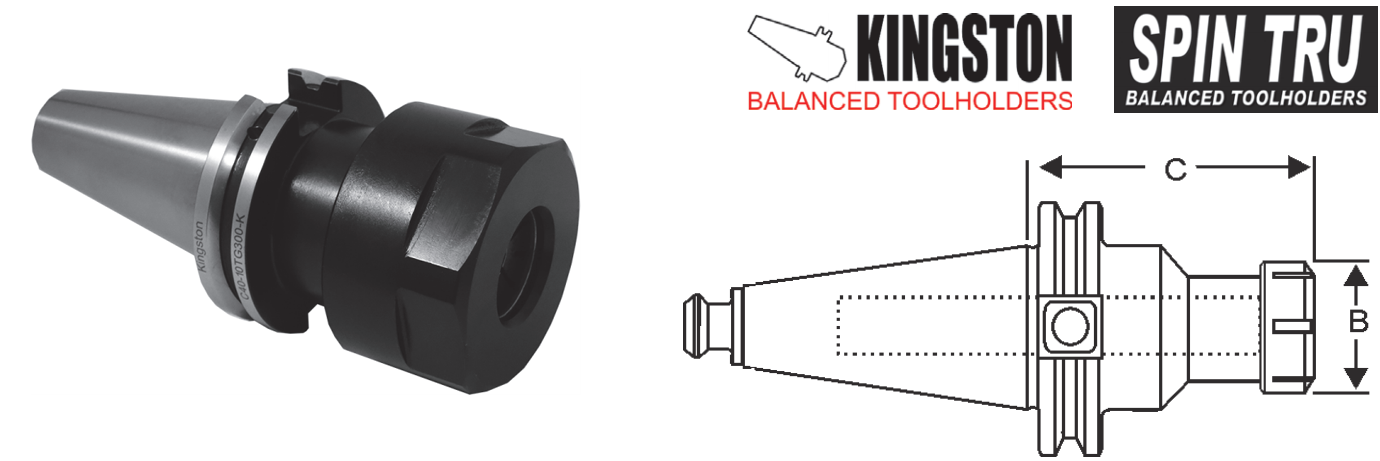

CAT 40 TG Series Collet Chucks

TG SERIES COLLET CHUCKS
  • Kingston: Balanced to 15,000 RPM @ g6.3
  • Spin Tru: Balanced to 20,000 RPM @ g2.5
  • Manufactured to ISO9002 quality control standards
  • Each holder balanced on a HAIMER Balancing machine and includes certificate of individual inspection and balancing
  • Accuracy: 0.0002" TIR or better
  • Taper cone circularity per AT3 specifications .00006" or better
  • H5 bore tolerance for optimum surface contact with cutting tool
  • Thru-tool coolant feature is standard
  • Includes collet nut
Prices are pulled from our database in real time. Press Add button to see product price.
Collet Series C Proj. B Nut Dia. Nut Tight. Torque (ft.lbs.) Brand Part Number MAX RPM Balanced Up to Collet Nut Wrench Code
TG 75 2.75 1.97 60 Spin Tru C40-75TG275-KB
20,000G2.5 CN-TG075-K WR-TG075-K D
TG 75 3.00 1.97 60 Kingston C40-75TG300-K
15,000G6.3 CN-TG075-K WR-TG075-K F
TG 75 6.00 1.97 60 Kingston C40-75TG600-K
15,000G6.3 CN-TG075-K WR-TG075-K F
TG 75 6.00 1.97 60 Spin Tru C40-75TG600-KB
20,000G2.5 CN-TG075-K WR-TG075-K D
TG 100 3.00 2.44 60 Kingston C40-10TG300-K
15,000G6.3 CN-TG100-K WR-TG100-K F
TG 100 3.00 2.44 60 Spin Tru C40-10TG300-KB
20,000G2.5 CN-TG100-K WR-TG100-K D
TG 100 4.00 2.44 60 Kingston C40-10TG400-K
15,000G6.3 CN-TG100-K WR-TG100-K F
TG 100 4.00 2.44 60 Spin Tru C40-10TG400-KB
20,000G2.5 CN-TG100-K WR-TG100-K D
TG 100 5.00 2.44 60 Kingston C40-10TG500-K
15,000G6.3 CN-TG100-K WR-TG100-K F
TG 100 5.50 2.44 60 Kingston C40-10TG550-K
15,000G6.3 CN-TG100-K WR-TG100-K F
TG 100 6.00 2.44 60 Kingston C40-10TG600-K
15,000G6.3 CN-TG100-K WR-TG100-K F
TG 100 6.00 2.44 60 Spin Tru C40-10TG600-KB
20,000G2.5 CN-TG100-K WR-TG100-K D
TG 100 6.50 2.44 60 Kingston C40-10TG650-K
15,000G6.3 CN-TG100-K WR-TG100-K F
TG 150 4.88 3.50 70 Kingston C40-15TG488-K
15,000G6.3 CN-TG150-K WR-TG100-K F
TG 150 4.88 3.50 70 Spin Tru C40-15TG488-KB
20,000G2.5 CN-TG150-K WR-TG100-K D
