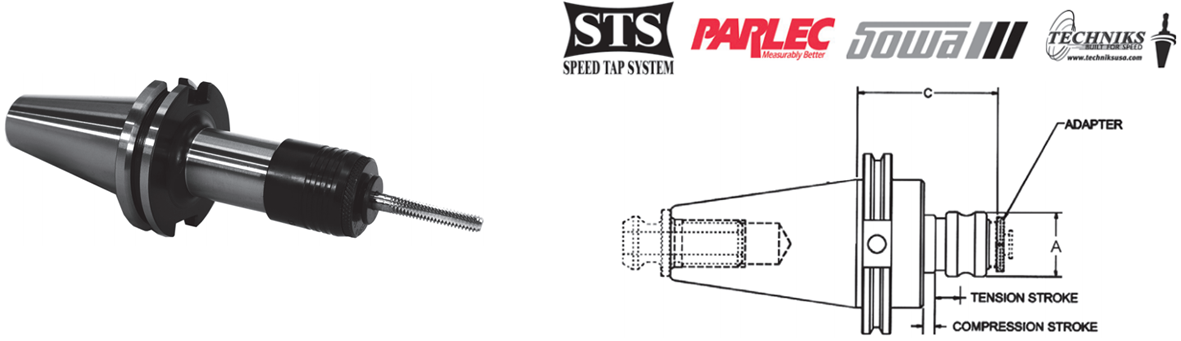

CAT 40 Taper Quick Change Tap Holders

CAT TAPER TAP HOLDERS
Tension / Compression and Rigid Tapping

For use with Industry Standard Quick-Change Tap Collets
Available for tension/compression or rigid tapping

Prices are pulled from our database in real time. Press Add button to see product price.

CAT 40 TAPER
Adapter Size	Capacity	C Proj	Comp	Tension	A Dia	Brand	Part Number	Code
TENSION/COMPRESSION
1	#0 - 9/16" Hand, 1/16" & 1/8" NPT	2.360	0.350	0.350	1.500	Techniks	C40-10TA236-T	B
	#0 - 9/16" Hand, 1/16" & 1/8" NPT	3.000	0.300	0.300	1.250	STS	C40-10TA300-U	D
	#0 - 9/16" Hand, 1/8" NPT	4.000	0.290	0.290	1.430	Sowa	C40-10TA400-G	C
2	5/16" - 7/8" Hand, 1/4",	3.810	0.492	0.492	1.960	STS	C40-20TA381-U	D
	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	4.500	0.490	0.490	2.090	Sowa	C40-20TA450-G	C
	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	3.940	0.590	0.590	2.170	Techniks	C40-20TA394-T	B
3	13/16" - 1 3/8" Hand, 3/4" - 1" NPT	5.430	0.940	0.940	3.110	Techniks	C40-30TA543-T	B
3	13/16" - 1 3/8" Hand, 3/4" - 1" NPT	5.780	0.787	0.787	3.070	STS	C40-30TA578-U	D
RIGID TAPPING
1	#0 - 9/16" Hand, 1/8" NPT	2.320	Rigid	Rigid	1.310	Techniks	C40-10FS232-T	B
	#0 - 9/16" Hand, 1/8" NPT	3.020	Rigid	Rigid	1.250	Sowa	C40-10FS302-G	C
	#0 - 9/16" Hand, 1/16" & 1/8" NPT	3.440	Rigid	Rigid	1.250	STS	C40-10FS344-U	D
	#0 - 9/16" Hand, 1/16" & 1/8" NPT	3.960	Rigid	Rigid	1.390	Parlec	C40-10TR396-P	B
2	5/16" - 7/8" Hand, 1/4", 3/8" & 1/2" NPT	3.230	Rigid	Rigid	1.970	Techniks	C40-20FS323-T	B
	5/16" - 7/8" Hand, 1/4", 3/8" & 1/2" NPT	3.430	Rigid	Rigid	1.960	STS	C40-20FS343-U	D
	5/16" - 7/8" Hand	3.660	Rigid	Rigid	2.000	Sowa	C40-20FS366-G	C
3	13/16" - 1- 3/8" Hand, 1/2" - 1" NPT	4.720	Rigid	Rigid	2.870	Sowa	C40-30FS472-G	C
3	13/16" -1 3/8" Hand, 3/4" - 1" NPT	4.720	Rigid	Rigid	2.830	STS	C40-30FS472-U	D
