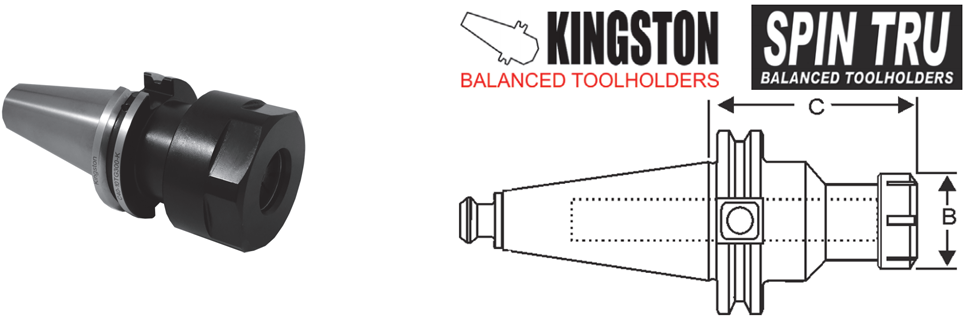

BT 30 TG Series Collet Chucks
- Kingston: Balanced to 15,000 RPM @ g6.3
- Spin Tru: Balanced to 20,000 RPM @ g2.5
- Manufactured to ISO9002 quality control standards
- Each holder balanced on a HAIMER Balancing machine and includes certificate of individual inspection and balancing
- Accuracy: 0.0002" TIR or better
- Taper cone circularity per AT3 specifications .00006" or better
- H5 bore tolerance for optimum surface contact with cutting tool
- Thru-tool coolant feature is standard
- Includes collet nut
| C Proj. | B Nut Dia. | Nut Tight. Torque (ft.lbs.) | Brand | Part Number | MAX RPM Balanced Up to | Collet Nut | Wrench | Code | |
| TG 100 | TG-100 Collet Series-5/64 to 1" (2mm - 25.4mm) | ||||||||
| 4.50 | 2.44 | 60 | Kingston | B30-10TG450-K | 15,000G6.3 | CN-TG100-K | WR-TG100-K | F | |
| 4.50 | 2.44 | 60 | Spin Tru | B30-10TG450-KB | 30,000G2.5 | CN-TG100-K | WR-TG100-K | D | |
