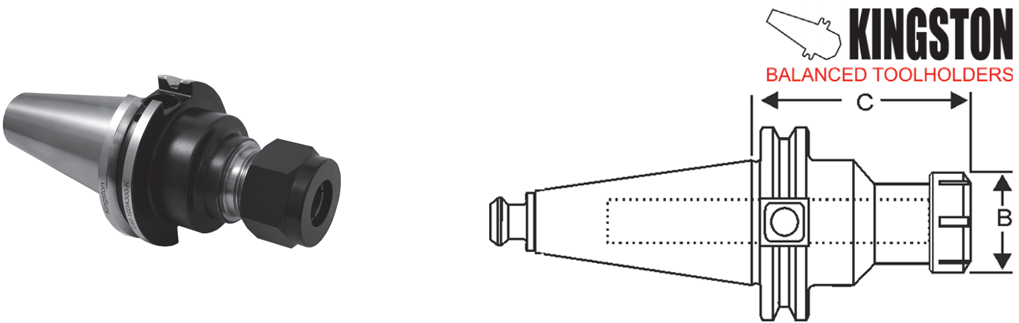

BT 30 DA Series Collet Chucks
- Kingston: Balanced to 15,000 RPM @ g6.3
- Spin Tru: Balanced to 20,000 RPM @ g2.5
- Manufactured to ISO9002 quality control standards
- Each holder balanced on a HAIMER Balancing machine and includes certificate of individual inspection and balancing
- Accuracy: 0.0002" TIR or better
- Taper cone circularity per AT3 specifications .00006" or better
- H5 bore tolerance for optimum surface contact with cutting tool
- Thru-tool coolant feature is standard
- Includes collet nut
| C Proj. | B Nut Dia. | Nut Tight. Torque (ft.lbs.) | Brand | Part Number | MAX RPM Balanced Up to | Collet Nut | Wrench | Code | ||
| DA 100 | DA100 Collet Series-.062 - 0.562 (1.587mm - 14.287mm) | |||||||||
| 3.00 | - | - | Kingston | B30-10DA300-K | 15,000G6.3 | CN-DA100-K | WR-DA100-K | F | ||
| DA 180 | DA180 Collet Series-.031 - 0.750 (.800mm - 19mm) | |||||||||
| 3.00 | - | - | Kingston | B30-18DA300-K | 15,000G6.3 | CN-DA180-K | WR-DA180-K | F | ||
