MH Hydraulic Cylinder
- Compact, low inertla, light weight cylinder :
Manufuctured by aluminium alloy, this cylinder is light weight design to reduce the loading of spindle. - High speed :
This balanced design cylinder is light weight, compact and maintains outstanding stability during high speed operation. - Long life :
High quality cylinder seals and high accuracy surface finish on components to ensure the long life of these cylinders.
| Piston Dia. (mm) |
Piston Area (cm²) |
Max. Draw Bar Force kN(kgf) |
Piston Stroke (mm) |
Max. Operating Pressure MPa(kgf / cm² |
Max. Speed (r.p.m.) |
Moment Of Inertia I (kg．m²) |
Weight (kg) |
Total Leakage L/min |
SPEC Part Number | Price Each | ||
| Push Side | Pull Side | Push Side | Pull Side | |||||||||
| 80 | 47.7 | 42.8 | 15.5(1580) | 13.9(1417) | 15 | 3.5(35.7) | 6000 | 0.005 | 5.1 | 0.4 | MH80 | Call or Email |
| 100 | 75.4 | 70.5 | 24.5(2498) | 22.9(2335) | 20 | 3.5(35.7) | 5500 | 0.0125 | 6.6 | 0.4 | MH100 | Call or Email |
| 125 | 121.1 | 114 | 39.3(4007) | 37(3773) | 25 | 3.5(35.7) | 5500 | 0.02 | 8.4 | 0.4 | MH125 | Call or Email |
| 150 | 176 | 160 | 66(6730) | 60(6118) | 30 | 4.0(40.8) | 4000 | 0.047 | 10.4 | 0.8 | MH150 | Call or Email |

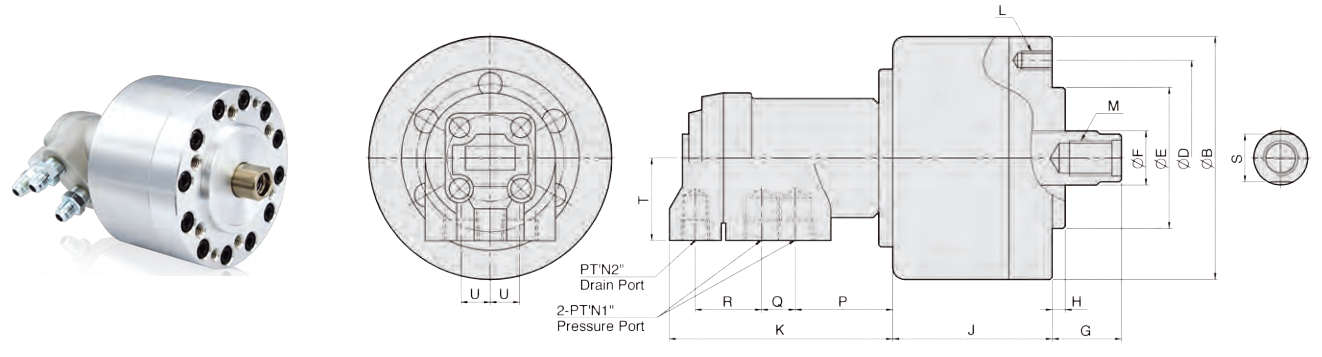

| B | D | E (h7) |
F | G max. |
G min. |
H | J | K | L | M | N1 | N2 | P | Q | R | T | U | S | DIM Part Number | Price Each |
| 112 | 90 | 65 | 25 | 45 | 30 | 6 | 73.5 | 103 | 6-M8x16 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 | MH80 | Call or Email |
| 135 | 100 | 80 | 25 | 45 | 25 | 6 | 88.5 | 103 | 6-M10x19 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 | MH100 | Call or Email |
| 160 | 130 | 110 | 30 | 51 | 26 | 6 | 95.5 | 103 | 6-M12x20 | M20x2.5x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 27 | MH125 | Call or Email |
| 190 | 130 | 110 | 45 | 50 | 20 | 6 | 107 | 103 | 12-M12x20 | M30x3.5x40 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 38 | MH150 | Call or Email |
