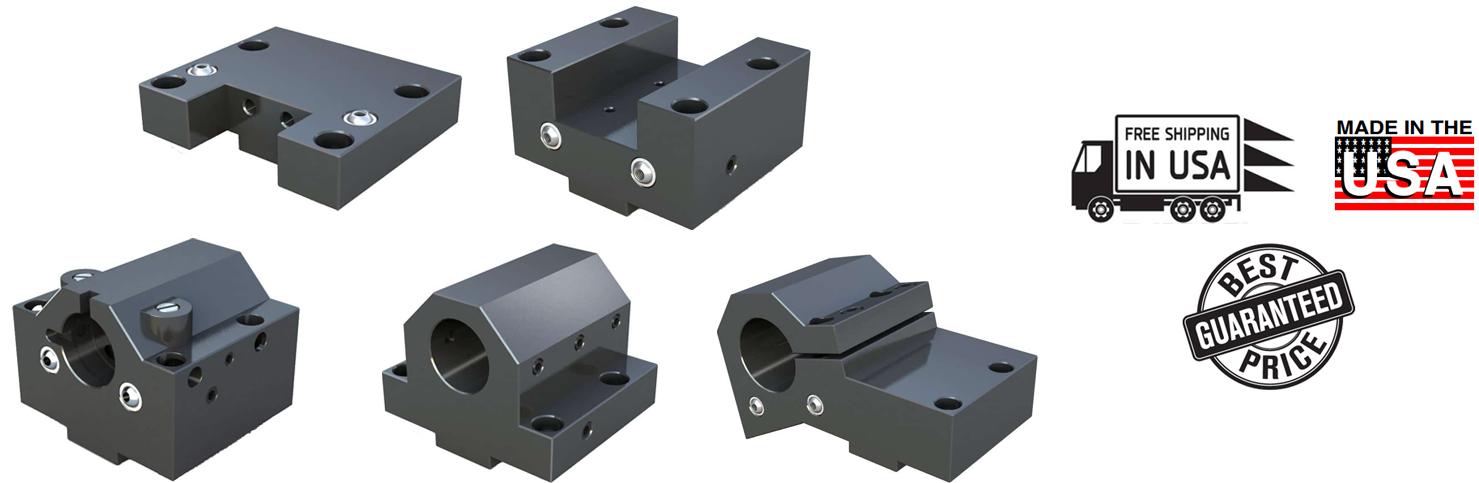

Mazak Tool Blocks
Tool Block Features
- Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
- Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
- Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
- Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
- Components Included: Wedges, Coolant Nozzles and Set Screws.
- Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
- Made in the USA.
- VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
- ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
- Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
- More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
| Bolt Hole Pattern: 76mm x 45mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Nexus100/150, QT8, QT150, QT250 | 1" | 1" | NEX100-8425 | NEX100-8411 1" Sq. | CALL | |
| 1.25" | 1.125" | NEX100-8432 | CALL | |||
| 1.50" | 1.125" | NEX100-8435 | CALL |
| Bolt Hole Pattern: 94mm x 60mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Bridgeport QT8, QT15/18, QTN15, SQT250, QT200, Romi M27, NEX150-8D, DualTurn 20 QT, Nexus250 Duplomatic, QT Nexus 200, QT Nexus 350, QT Nexus 300, QT20, QT Nexus 2000 | 0.75" | 50mm | NEX350-8420 | NEX350-8311 1" Sq. | NEX350-8411 1" Sq. | CALL |
| 1" | 50mm | NEX350-8425 | CALL | |||
| 1.25" | 50mm | NEX350-8432 | CALL | |||
| 1.50" | 50mm | NEX350-8435 | CALL | |||
| 2" | 50mm | NEX350-8436 | CALL | |||
| 2.50" | 50mm | NEX350-8437 | CALL | |||
| 3" | 50mm | NEX350-8475 | CALL |
| Bolt Hole Pattern: 118mm x 88mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| NEXUS 400, NEXUS 450 | 1.50" | 2" | NEX450-8435 | NEX450-8311B 1.25" Sq. | NEX450-8411B 1.25" Sq. | CALL |
| 2" | 2" | NEX450-8436 | CALL | |||
| 2.5" | 2" | NEX450-8437 | CALL | |||
| 3" | 2" | NEX450-8475 | CALL |
| Bolt Hole Pattern: 104mm x 57mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| QT25, QT28N, QT30, QT300 | 1.5" | 2.25" | QT30-8435 | QT30-8311 1" Sq. | QT30-8411 1" Sq. | CALL |
| 2" | 2.25" | QT30-8436 | CALL |
| Bolt Hole Pattern: 94mm x 84mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| QT35N, QTN40, QT350 | 1.50" | 2" | QT35-8435 | QT35-8311B 1.25" Sq. | QT35-8411B 1.25" Sq. | CALL |
| 2" | 2" | QT35-8436 | CALL |
| Bolt Hole Pattern: 84mm x 60mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| QT200, QTN250, Smart250, Smart200 | 1.25" | 2" | QT200-8432 | QT200-8311 1" Sq. | QT200-8411 1" Sq. | CALL |
| 1.50" | 2" | QT200-8435 | CALL |
| 6 Hole:BHP 114mm x 203mm ALT. 4 Hole: BHP 114mm x 101mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Slant50, Slant60 | 2.5" | 80mm | Slant50-8437-4H | Slant50-8311 1.25" Sq. B-4H | Slant50-8411 1.25" Sq. B-4H | CALL |
| 3" | 80mm | Slant50-8475-4H | Slant50-8311 1.25" Sq. B-6H | Slant50-8411 1.25" Sq. B-6H | CALL | |
| 2.5" | 80mm | Slant50-8437-6H | CALL | |||
| 3" | 80mm | Slant50-8475-6H | CALL |
