M Hydraulic Cylinder

High speed through-hole rotary hydraulic cylinder
  • Compact and light weight :
    Comparing with the regular product, it is compact (reduced to MAX 95mm) and lighter (weighted MAX 4.5kg). It’s more stable to reduce the burden of the machinery at high speed turning.
  • The largest bore : Comparing with the regular product, it has about 20% larger bore diameter forutilizing the capacity of machinery.
  • The safety structure : It can retain the gripping force by check valve.
Piston
Dia.
(mm)		 Piston Area
(cm²)		 Max. Draw Bar Force
kN(kgf)		 Piston
Stroke
(mm)		 Max.
Operating
Pressure
MPa(kgf / cm²		 Max.
Speed
(r.p.m.)		 Moment Of
Inertia
I
(kg．m²)		 Weight
(kg)		 Total
Leakage
L/min		 SPEC Part Number Price Each
Push Side Pull Side Push Side Pull Side
90 53.2 48.3 19.9(2029) 18(1835) 10 4.0(40.8) 8000 0.006 5.5 3.0 M0928
Call or Email
105 71 68.5 26(2651) 25(2549) 15 4.0(40.8) 8000 0.011 8.6 3.0 M1036
Call or Email
105 71 66 26(2651) 24.5(2498) 15 4.0(40.8) 8000 0.011 8.5 3.0 M1038
Call or Email
125 100 89 38(3875) 33(3365) 15 4.0(40.8) 7000 0.019 13 3.0 M1236
Call or Email
125 100 89 38(3875) 33(3365) 15 4.0(40.8) 7000 0.019 12 3.0 M1246
Call or Email
155 161 154 60(6118) 57.8(5894) 22 4.0(40.8) 6200 0.056 18 3.9 M1546
Call or Email
155 161 150 60(6118) 56(5710) 22 4.0(40.8) 6200 0.052 16.8 3.9 M1552
Call or Email
180 198 197 74(7546) 73.5(7495) 25 4.0(40.8) 4700 0.098 28 4.2 M1868
Call or Email
180 198 183 74(7546) 69(7036) 25 4.0(40.8) 4700 0.095 26.5 4.2 M1870
Call or Email
180 198 183 74(7546) 69(7036) 25 4.0(40.8) 4700 0.095 26 4.2 M1875
Call or Email
180 198 183 74(7546) 69(7036) 25 4.0(40.8) 4700 0.095 25.5 4.2 M1878
Call or Email
205 262 234 98(9993) 88(8973) 23 40(40.8) 3800 0.15 36.5 4.5 M2078
Call or Email
205 252 234 94(9585) 88(8973) 30 4.0(40.8) 3800 0.15 37.5 4.5 M2085
Call or Email
205 252 234 94(9585) 88(8973) 30 4.0(40.8) 3800 0.15 37 4.5 M2091
Call or Email
250 348 336 124(12644) 120(12236) 23 4.0(40.8) 2800 0.45 57 7.0 M2511
Call or Email

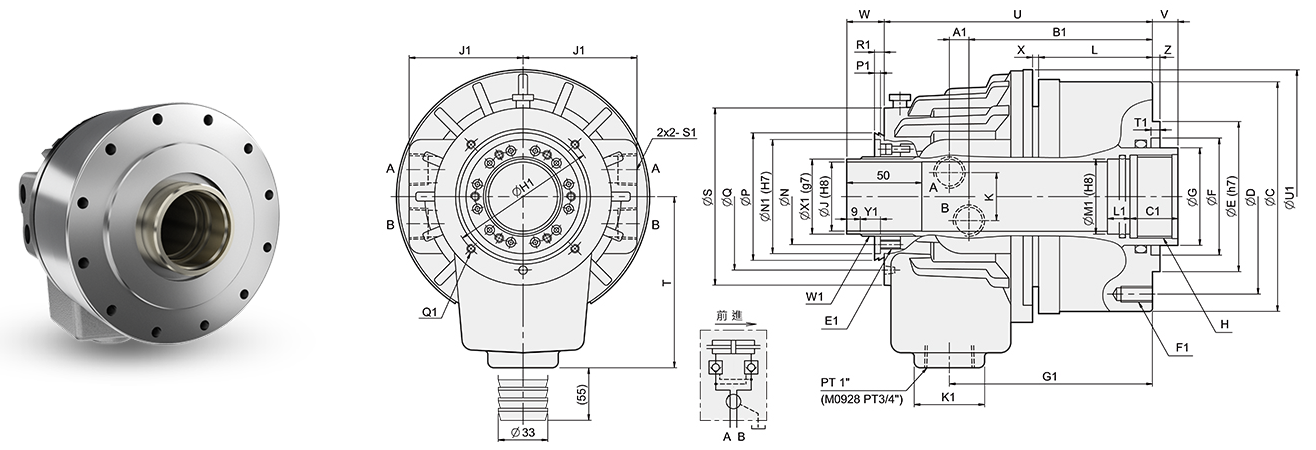

A1 B1 C1 E1 F1 G1 H1 J1 K1 L1 M1 N1 P1 Q1 R1 S1 T1 U1 W1 X1 Y1 DIM Part Number Price Each
9 108 25 8-M6x10 6-M8x15 110 76 58 44 15 34 53 4 4-M4x7 5 PT 1/4" 6 116 M34x1.5 32 15 M0928 Call or Email
11 120.5 25 6-M5x10 6-M10x17 126 88 68 53 15 38 64 4 6-M5x12 5 PT 3/8" 6 136 M44x1.5 42 14 M1036 Call or Email
11 120.5 25 6-M5x10 6-M10x17 126 88 68 53 15 40 64 4 6-M5x12 5 PT 3/8" 6 136 M44x1.5 42 14 M1038 Call or Email
11 126.5 25 6-M6x12 12-M10x20 135 98 76 47 15 38 76 4 4-M5x12 6 PT 1/2" 6 169 M52x1.5 50 14 M1236 Call or Email
11 126.5 30 6-M6x12 12-M10x20 135 98 76 47 15 50 76 4 4-M5x12 6 PT 1/2" 6 169 M52x1.5 50 14 M1246 Call or Email
11 133.5 30 6-M6x12 12-M10x20 145 110 86 47 15 50 85 4 4-M6x12 7 PT 1/2" 6 188 M58x1.5 56 13.5 M1546 Call or Email
11 133.5 30 6-M6x12 12-M10x20 145 110 86 47 15 55 85 4 4-M6x12 7 PT 1/2" 6 188 M58x1.5 56 13.5 M1552 Call or Email
17.5 152.5 35 6-M6x12 12-M10x20 166.5 155 101 47 15 70 108 4 4-M6x12 7.5 PT 1/2" 6 215 M84x2 81 12.5 M1868 Call or Email
17.5 152.5 35 6-M6x12 12-M10x20 166.5 155 101 47 15 75 108 4 4-M6x12 7.5 PT 1/2" 6 215 M84x2 81 12.5 M1870 Call or Email
17.5 152.5 35 6-M6x12 12-M10x20 166.5 155 101 47 15 80 108 4 4-M6x12 7.5 PT 1/2" 6 215 M84x2 81 12.5 M1875 Call or Email
17.5 152.5 35 6-M6x12 12-M10x20 166.5 155 101 47 20 82 108 4 4-M6x12 7.5 PT 1/2" 6 215 M84x2 81 12.5 M1878 Call or Email
21 166.5 35 6-M6x12 12-M12x24 182 165 110 47 20 84 120 4 4-M6x12 7 PT 1/2" 6 240 M99x2 96 20 M2078 Call or Email
21 166.5 35 6-M6x12 12-M12x24 182 165 110 47 20 89 120 4 4-M6x12 7 PT 1/2" 6 240 M99x2 96 13 M2085 Call or Email
21 166.5 35 6-M6x12 12-M12x24 182 165 110 47 15 95 120 4 4-M6x12 7 PT 1/2" 6 240 M99x2 96 13 M2091 Call or Email
27 184.5 45 6-M6x12 12-M16x32 197 206 129 55 20 123 160 5 4-M6x12 7 PT 1/2" 6 294 --- 134.6 --- M2511 Call or Email
C D E F G H J K L N P Q S T U V
max.		 V
min.		 W
max.		 W
min.		 X Z DIM Part Number Price Each
120 100 80 65 44 M38x1.5 28 25 63 44 59 76 90 105 151 14 4 35 25 3 5 M0928 Call or Email
136 115 100 65 48 M42x1.5 36 32 71 55 73 88 104 115 174.5 15 0 39 24 2.5 5 M1036 Call or Email
136 115 100 65 50 M44x1.5 38 32 71 55 73 88 104 115 174.5 15 0 39 24 2.5 5 M1038 Call or Email
155 130 100 80 65 M42x1.5 36 36 76 64 85 98 118 114 179 15 0 40 25 4 5 M1236 Call or Email
155 130 100 80 65 M55x2 46 36 76 64 85 98 118 114 179 15 0 40 25 4 5 M1246 Call or Email
190 170 130 85 65 M55x2 46 36 84 73 96 114 137 130 190.5 22 0 47.5 25.5 3.5 5 M1546 Call or Email
190 170 130 85 70 M60x2 52 36 84 73 96 114 137 130 190.5 22 0 47.5 25.5 3.5 5 M1552 Call or Email
215 190 160 120 85 M75x2 68 36 95 98 121 140 165 159 225 25 0 50 25 3 5 M1868 Call or Email
215 190 160 120 95 M78x2 70 36 95 98 121 140 165 159 225 25 0 50 25 3 5 M1870 Call or Email
215 190 160 120 95 M85x2 75 36 95 98 121 140 165 159 225 25 0 50 25 3 5 M1875 Call or Email
215 190 160 120 95 M87x2 78 36 95 98 121 140 165 159 225 25 0 50 25 3 5 M1878 Call or Email
240 215 180 140 110 M90x2 78 36 104 108 138 158 182 177 248 23 0 55 32 3 5 M2078 Call or Email
240 215 180 140 110 M93x2 85 36 104 108 138 158 182 177 248 30 0 55 25 3 5 M2085 Call or Email
240 215 180 140 110 M100x2 91 36 104 108 138 158 182 177 248 30 0 55 25 3 5 M2091 Call or Email
310 275 230 166 140 M130x2 117.5 36 101 148 178 190 232 215 290 24 1 38 15 3 6 M2511 Call or Email
