Type LBF Bushings
Manufactured with a flat for clamping the toolholder and two set screws for clamping a variety of drill, boring bars and other shank tools. Equipped with two clearance notches for coolant. Heat treated and precision ground concentric. Prices are pulled from our database in real time. Press Add button to see product price.

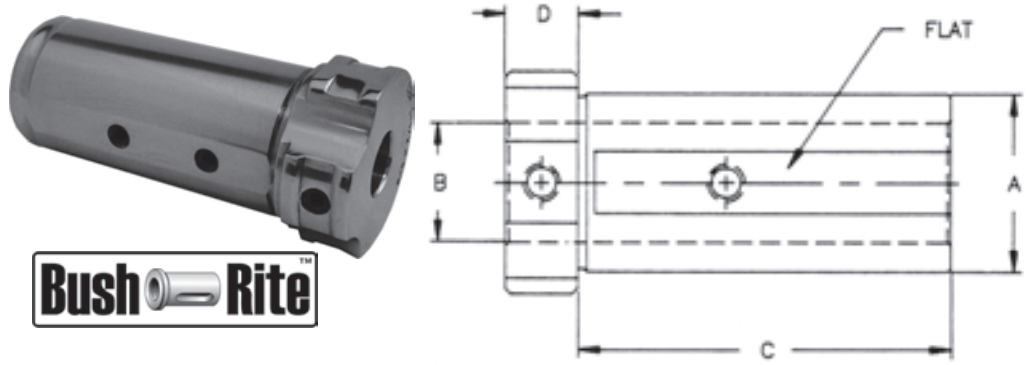

| A O.D. |
C | D | B I.D. |
Part Number |
| 1-1/2” | 3-5/32” | 5/8” | 1/4” | TBLBF-15-0250-B |
| 3/8” | TBLBF-15-0375-B | |||
| 1/2” | TBLBF-15-0500-B | |||
| 5/8” | TBLBF-15-0625-B | |||
| 3/4” | TBLBF-15-0750-B | |||
| 7/8” | TBLBF-15-0875-B | |||
| 1” | TBLBF-15-1000-B | |||
| 1-1/4” | TBLBF-15-1250-B |
