Type LB Bushings

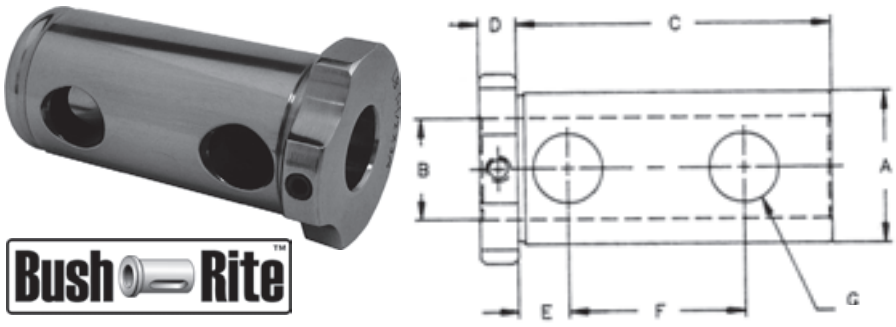

This long solid body bushing has four clearance holes so that you can clamp directly on the tool with set screws for positive alignemnt of the cutting edge of the tool. Manufactured to include clearance notches for coolant. Hardened and precision ground concentric.
FOR OKUMA LB-15 LATHES Prices are pulled from our database in real time. Press Add button to see product price.
| A O.D. |
C | D | E | F | B I.D. |
Part Number |
| 1-1/2” | 3-1/8” | 3/8” | 1/2” | 1-3/4” | 1/4” | TBLB-15-0250-B |
| 3/8” | TBLB-15-0375-B | |||||
| 1/2” | TBLB-15-0500-B | |||||
| 5/8” | TBLB-15-0625-B | |||||
| 3/4” | TBLB-15-0750-B | |||||
| 7/8” | TBLB-15-0875-B | |||||
| 1” | TBLB-15-1000-B | |||||
| 1-1/4” | TBLB-15-1250-B |
