Type L Bushings

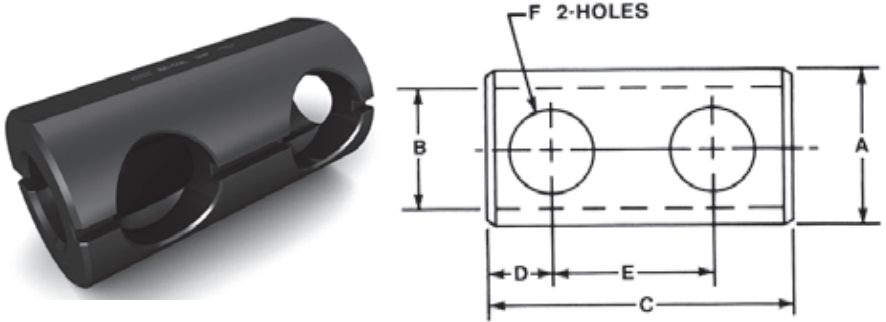

“L” style bushings are used to adapt drill, boring bars and shank tools to any size in a standard turret or toolholder.
All “L” style bushings have set screw clearance holes opposite the slot and have a split with a flat on the O.D. Prices are pulled from our database in real time. Press Add button to see product price.
| A O.D. |
C OAL |
D | E | F | No Of Holes | B I D |
Part Number |
| 1-1/2" | 3" | 3/4" | 1-5/8" | 7/8" | 2" | 3/8" | TBL-15-0375 |
| 1/2" | TBL-15-0500 | ||||||
| 5/8" | TBL-15-0625 | ||||||
| 3/4" | TBL-15-0750 | ||||||
| 1" | TBL-15-1000 | ||||||
| 1-1/4" | TBL-15-1250 | ||||||
| 1-3/4" | 3" | 3/4" | 1-5/8" | 7/8" | 2" | 1/2" | TBL-17-0500 |
| 5/8" | TBL-17-0625 | ||||||
| 3/4" | TBL-17-0750 | ||||||
| 1" | TBL-17-1000 | ||||||
| 1-1/4" | TBL-17-1250 | ||||||
| 1-1/2" | TBL-17-1500 | ||||||
| 2-1/4" | 4-1/2" | 7/8" | 2" | 1" | 2" | 5/8" | TBL-22-0625 |
| 3/4" | TBL-22-0750 | ||||||
| 1" | TBL-22-1000 | ||||||
| 1-1/4" | TBL-22-1250 | ||||||
| 1-1/2" | TBL-22-1500 | ||||||
| 1-3/4" | TBL-22-1750 | ||||||
| 2" | TBL-22-2000 | ||||||
| 2-3/4" | 4-1/2" | 7/8" | 2" | 1" | 2" | 3/4" | TBL-27-0750 |
| 1" | TBL-27-1000 | ||||||
| 1-1/4" | TBL-27-1250 | ||||||
| 1-1/2" | TBL-27-1500 | ||||||
| 1-3/4" | TBL-27-1750 | ||||||
| 2" | TBL-27-2000 | ||||||
| 2-1/4" | TBL-27-2250 |
