Type J Bushings

TYPE J BUSHINGS
Type J bushings have clearance holes so that you can clamp directly on the tool with set screws for positive alignment of the cutting edge of the tool.
FEATURES:

Increased step diameter for easy and perfect sealing.
Concentric ground and diamond polished on OD & ID resulting in a mirror smooth finish
”Easy Entry” feature on OD for quick insertion

Prices are pulled from our database in real time. Press Add button to see product price.

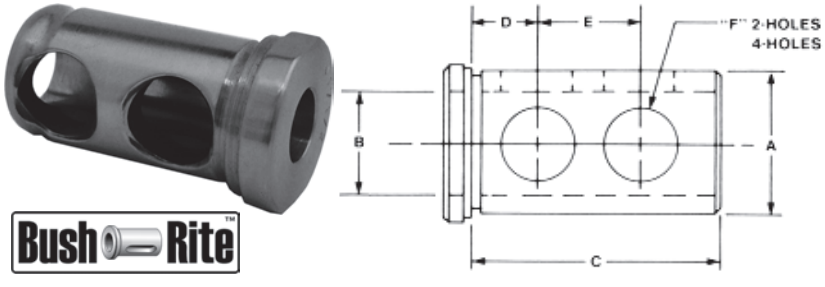

A O.D.	C	E	D	F	B I.D.	Part Number
3/4”	1-1/2”	13/16”	3/8”	3/8”	1/4”	TBJ-07-0250-B
					5/16”	TBJ-07-0312-B
					3/8”	TBJ-07-0375-B
					1/2”	TBJ-07-0500-B
1”	1-3/4”	7/8”	7/16”	5/8”	3/8”	TBJ-10-0375-B
					1/2”	TBJ-10-0500-B
					5/8”	TBJ-10-0625-B
					3/4”	TBJ-10-0750-B
1-1/4”	2-1/8”	1”	5/8”	5/8”	3/8”	TBJ-12-0375-B
					1/2”	TBJ-12-0500-B
					5/8”	TBJ-12-0625-B
					3/4”	TBJ-12-0750-B
					7/8”	TBJ-12-0875-B
					1”	TBJ-12-1000-B
1-1/2”	2-1/2”	1-1/8”	11/16”	7/8”	3/8”	TBJ-15-0375-B
					1/2”	TBJ-15-0500-B
					5/8”	TBJ-15-0625-B
					3/4”	TBJ-15-0750-B
					7/8”	TBJ-15-0875-B
					1”	TBJ-15-1000-B
					1-1/4”	TBJ-15-1250-B
1-3/4”	3”	1-1/4”	3/4”	7/8”	1/2”	TBJ-17-0500-B
					5/8”	TBJ-17-0625-B
					3/4”	TBJ-17-0750-B
					7/8”	TBJ-17-0875-B
					1”	TBJ-17-1000-B
					1-1/4”	TBJ-17-1250-B
					1-1/2”	TBJ-17-1500-B
2”	3-1/2”	1-1/2	3/4”	1	1/2”	TBJ-20-0500-B
					5/8”	TBJ-20-0625-B
					3/4”	TBJ-20-0750-B
					7/8”	TBJ-20-0875-B
					1”	TBJ-20-1000-B
					1-1/4”	TBJ-20-1250-B
					1-1/2”	TBJ-20-1500-B
					1-3/4”	TBJ-20-1750-B
