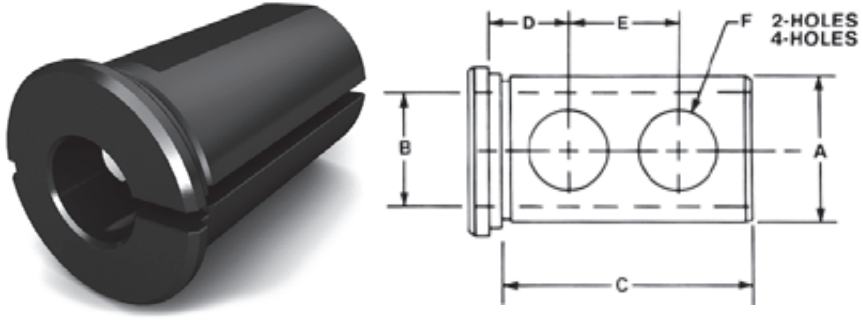

Type DD Bushings
Combination of the industry standard “B” style split bushing and “J” set screw clearance bushing design.
This bushing with clearance holes and split milled flat can be used as a conventional “B” style or “J” style bushing.
Prices are pulled from our database in real time. Press Add button to see product price.
| A Outside Dia |
C Length Under Head |
D | E | F Hole Size |
No. of Holes | B Inside Dia. |
Part Number |
| 1-1/2" | 2-1/2" | 11/16" | 1-1/8" | 7/8" | 2" | 3/8" | TBDD-15-0375 |
| 1/2" | TBDD-15-0500 | ||||||
| 5/8" | TBDD-15-0625 | ||||||
| 3/4" | TBDD-15-0750 | ||||||
| 7/8" | TBDD-15-0875 | ||||||
| 1" | TBDD-15-1000 | ||||||
| 1-1/4" | TBDD-15-1250 | ||||||
| 1-3/4" | 3" | 3/4" | 1-1/4" | 7/8" | 2" | 1/2" | TBDD-17-0500 |
| 5/8" | TBDD-17-0625 | ||||||
| 3/4" | TBDD-17-0750 | ||||||
| 7/8" | TBDD-17-0875 | ||||||
| 1" | TBDD-17-1000 | ||||||
| 1-1/4" | TBDD-17-1250 | ||||||
| 1-1/2" | TBDD-17-1500 | ||||||
| 2" | 3-1/2" | 3/4" | 1-1/2" | 1" | 2" | 1/2" | TBDD-20-0500 |
| 5/8" | TBDD-20-0625 | ||||||
| 3/4" | TBDD-20-0750 | ||||||
| 7/8" | TBDD-20-0875 | ||||||
| 1" | TBDD-20-1000 | ||||||
| 1-1/4" | TBDD-20-1250 | ||||||
| 1-1/2" | TBDD-20-1500 | ||||||
| 1-3/4" | TBDD-20-1750 | ||||||
| 2-1/2" | 4" | 7/8" | 1-3/4" | 1-1/4" | 2" | 1/2" | TBDD-25-0500 |
| 5/8" | TBDD-25-0625 | ||||||
| 3/4" | TBDD-25-0750 | ||||||
| 7/8" | TBDD-25-0875 | ||||||
| 1" | TBDD-25-1000 | ||||||
| 1-1/4" | TBDD-25-1250 | ||||||
| 1-1/2" | TBDD-25-1500 | ||||||
| 1-3/4" | TBDD-25-1750 | ||||||
| 2" | TBDD-25-2000 | ||||||
| 2-1/4" | TBDD-25-2250 | ||||||
| 3" | 4-1/2" | 1" | 2" | 1-1/4" | 4" | 1" | TBDD-30-1000 |
| 1-1/4" | TBDD-30-1250 | ||||||
| 1-1/2" | TBDD-30-1500 | ||||||
| 1-3/4" | TBDD-30-1750 | ||||||
| 2" | TBDD-30-2000 | ||||||
| 2-1/4" | TBDD-30-2250 | ||||||
| 2-1/2" | TBDD-30-2500 | ||||||
| 3-1/2" | 5-1/4" | 1-1/4" | 2-1/2" | 1-1/4" | 4" | 1-1/2" | TBDD-35-1500 |
| 1-3/4" | TBDD-35-1750 | ||||||
| 2" | TBDD-35-2000 | ||||||
| 2-1/4" | TBDD-35-2250 | ||||||
| 2-1/2" | TBDD-35-2500 | ||||||
| 3" | TBDD-35-3000 |
