Type CS Short Series Bushings
Similar to the “C” Style bushing, but with a shorter overall length. Designed for universal use on all CNC turning machines. To adapt a wide variety of boring bars, drills, reamers and shank type tools.
SPECIFICATIONS:
Material: ALLOY STEEL 8620
Hardness Data: Rc 55-57 for longer tool life Case Hardened and Ground Concentric OD & ID
Axial Concentricity: OD & ID- 0.002”
Tolerance: H6 & g6 in grinding the OD & ID Prices are pulled from our database in real time. Press Add button to see product price.

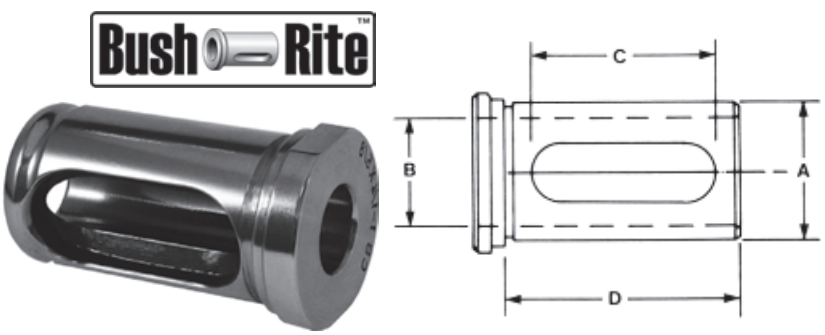

| A O.D. |
C Slot Length | D Length Under Head | B I.D. |
Part Number |
| 3/4” | 1-1/8” | 1-1/2” | 1/4” | TBCS-07-0250-B |
| 5/16” | TBCS-07-0312-B | |||
| 3/8” | TBCS-07-0375-B | |||
| 1/2” | TBCS-07-0500-B | |||
| 1” | 1-3/8” | 1-3/4” | 1/4” | TBCS-10-0250-B |
| 5/16” | TBCS-10-0312-B | |||
| 3/8” | TBCS-10-0375-B | |||
| 1/2” | TBCS-10-0500-B | |||
| 5/8” | TBCS-10-0625-B | |||
| 3/4” | TBCS-10-0750-B | |||
| 1-1/4” | 1-3/4”” | 2-1/8” | 3/8” | TBCS-12-0375-B |
| 1/2” | TBCS-12-0500-B | |||
| 5/8” | TBCS-12-0625-B | |||
| 3/4” | TBCS-12-0750-B | |||
| 7/8” | TBCS-12-0875-B | |||
| 1” | TBCS-12-1000-B | |||
| 1-1/2” | 2-1/8” | 2-1/2” | 3/8” | TBCS-15-0375-B |
| 1/2” | TBCS-15-0500-B | |||
| 5/8” | TBCS-15-0625-B | |||
| 3/4” | TBCS-15-0750-B | |||
| 7/8” | TBCS-15-0875-B | |||
| 1” | TBCS-15-1000-B | |||
| 1-1/4” | TBCS-15-1250-B |
