KD Series Chuck

3-jaw strong scroll chuck D1
camlock direct mounting, 2-piece jaws
(ASA spindle nose D1-4, D1-5, D1-6, D1-8)
American standard camlock type with 2-piece reversible hard top jaws.

• Gripping accuracy of 0.03mm (0.0012 inch) T.I.R..
• Standard accessories chuck wrench, hex. key. and a set of mounting bolts. (UNC-bolts)
• The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

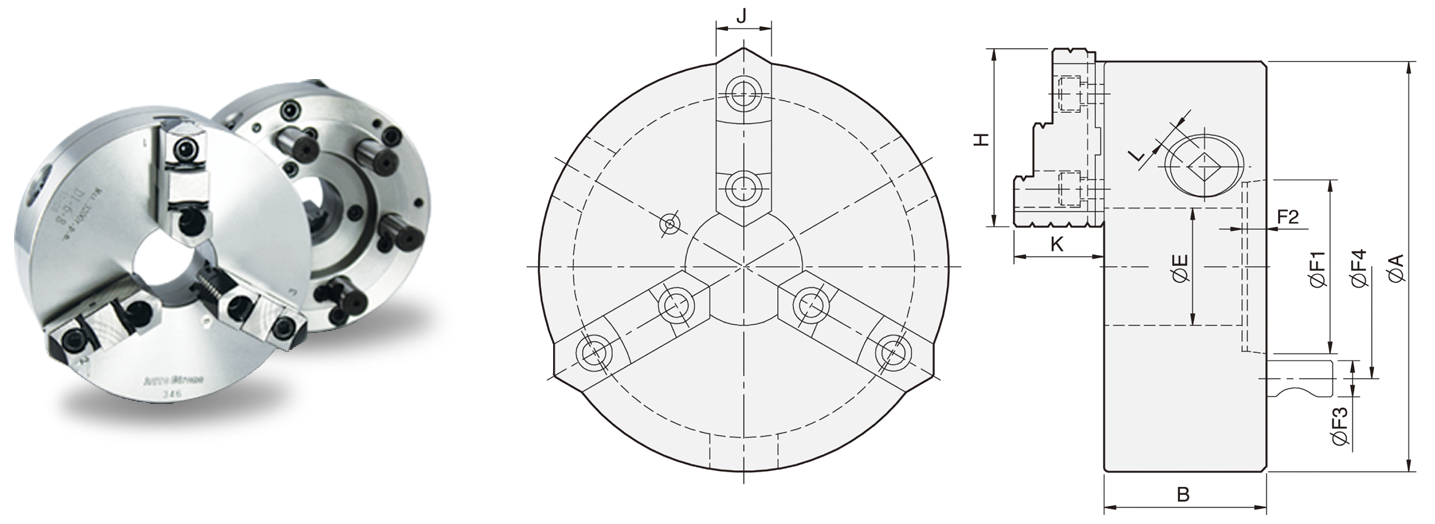

Spindle Size	A	B	E	H	J	K	L	Mounting Dimensions				Allowable Handle Torque (kgf．m)	Gripping Force (kgf)	Max. Speed (r.p.m.)	Weight (kg)	Moment Of Inertia I (kg ．m²)	Gripping Range O.D. Range / I.D. Range	Part Number	Price Each
								F1	F2	F3	F4
D1-4	165	71	40	72	26	39.5	10	63.513	13	15.8	82.55	9.0	2200	2000	11	0.04	Ø8-Ø160 / Ø55-Ø150	KD4-6" Add	Call or Email
D1-4	200	77.2	53	82	28	42.2	11	63.513	13	15.8	82.55	11.5	2500	2000	18.5	0.07	Ø8-Ø180 / Ø62-Ø170	KD4-8" Add	Call or Email
D1-5	200	77.2	55	82	28	42.2	11	82.563	16	19	104.78	11.5	2500	2000	18	0.07	Ø8-Ø180 / Ø62-Ø170	KD5-8" Add	Call or Email
D1-6	200	77.2	58	82	28	42.2	11	106.375	17	22.2	133.35	11.5	2500	2000	17	0.07	Ø8-Ø180 / Ø62-Ø170	KD6-8" Add	Call or Email
D1-6	250	86	76	90.9	32	50.8	12	106.375	17	22.2	133.35	19.5	4000	1800	29.5	0.2	Ø11-Ø220 / Ø70-Ø210	KD6-10" Add	Call or Email
D1-6	306	107.5	103	114.5	40	57.8	14	106.375	13.5	22.2	133.35	21.0	4200	1800	47	0.5	Ø15-Ø300 / Ø90-Ø290	KD6-12" Add	Call or Email
D1-8	250	86	80	90.9	32	50.8	12	139.719	19	25.4	171.45	19.5	4000	1800	27	0.2	Ø11-Ø220 / Ø70-Ø210	KD8-10" Add	Call or Email
D1-8	306	107.5	103	114.5	40	57.8	14	139.719	18	25.4	171.45	21.0	4200	1800	47	0.5	Ø15-Ø300 / Ø90-Ø290	KD8-12" Add	Call or Email
