SOFT JAWS POINTED - METRIC TONGUE & GROOVE **FOR USE ON: SMW Autoblok KNCS, SMW Systems, Schunk, Rohm Chucks Using GBK Master Base Jaws
- Metric tongue & groove
- Supplies maximum concentricity on finish turning operations
- Can be bored or turned to fit workpiece
- Steel jaws can be hardened
- Available flat ended or pointed for smaller diameter parts
- Special orders available
- Available in Aluminum & Steel

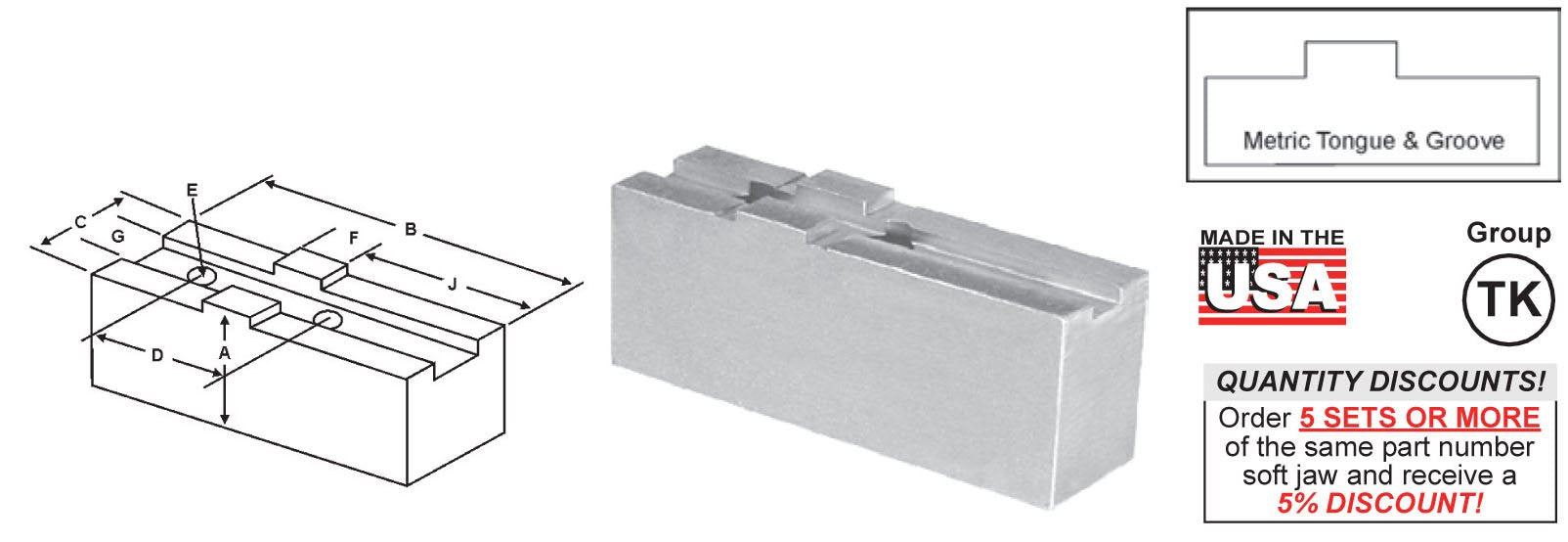

| Critical Dimensions | ALUMINUM | STEEL | ||||||||||
| Group No. |
Chuck Size | Groove Width G |
Tongue Width F |
Screw Size E |
Hole Space D |
Hght Inch A |
Tongue to Front J |
Tongue Position | Width Inch C |
Length Inch B |
POINTED END Part Number |
POINTED END Part Number |
| TK-08-08-32 | 5-1/2 | 0.315 (8mm) | 0.709 | 8mm | 1.260 (32mm) | 1.50 | 1.380 | Offset | 0.750 | 2.750 | WK-5150AP | WK-5150P |
| 1.50 | 0.895 | Centered | 1.500 | 2.500 | WK-5152AP | WK-5152P | ||||||
| 6 | 0.315 (8mm) | 0.709 | 8mm | 1.260 (32mm) | 1.50 | 1.380 | Offset | 0.750 | 2.750 | WK-6150AP | WK-6150P | |
| 1.50 | 0.895 | Centered | 1.500 | 2.500 | WK-6152AP | WK-6152P | ||||||
| 2.00 | 1.380 | Offset | 0.750 | 2.750 | WK-6200AP* | - | ||||||
| 7 | 0.315 (8mm) | 0.709 | 8mm | 1.260 (32mm) | 1.50 | 1.670 | Offset | 0.750 | 3.375 | WK-7150AP | WK-7150P | |
| 1.50 | 1.000 | Offset | 1.500 | 2.500 | WK-7152AP | WK-7152P | ||||||
| TK-10-08-40 | 8 | 0.393 (10mm) | 0.787 | 8mm | 1.575 (40mm) | 2.00 | 1.920 | Offset | 1.000 | 4.125 | WK-8200AP | WK-8200P |
| 2.00 | 0.980 | Centered | 1.750 | 2.750 | WK-8202AP | WK-8202P | ||||||
| TK-12-12-40 | 10 | 0.472 (12mm) | 0.787 | 12mm | 1.575 (40mm) | 2.00 | 3.125 | Offset | 1.250 | 5.000 | WK-10200AP | WK-10200P |
| 2.50 | 1.500 | Offset | 2.250 | 3.500 | WK-10252AP | WK-10252P | ||||||
| TK-12-12-54 | 12 - 16 | 0.472 (12mm) | 1.023 | 12mm | 2.126 (54mm) | 2.00 | 1.990 | Centered | 1.250 | 5.000 | WK-12200AP | WK-12200P |
| 2.25 | 3.230 | Offset | 1.500 | 5.750 | WK-16220AP | WK-16220P | ||||||
| 2.50 | 1.400 | Offset | 3.000 | 3.500 | WK-12252AP | WK-12252P | ||||||
| 3.00 | 1.750 | Offset | 3.000 | 4.000 | WK-16302AP | WK-16302P | ||||||
| TK-18-16-60 | 18 - 24 | 0.708 (18mm) | 1.180 | 16mm | 2.362 (60mm) | 2.875 | 3.000 | Offset | 1.750 | 7.000 | WK-24300AP* | - |
| 2.875 | 3.000 | Offset | 4.000 | 6.000 | WK-24302AP* | - | ||||||
