SOFT JAWS POINTED - AMERICAN STANDARD TONGUE & GROOVE

FOR USE ON: Bison, Buck, BTC, Cushman, TMX, PBA, Yuasa & Rohm Chucks
  • American Standard Tongue & Groove
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum, Steel
Prices are pulled from our database in real time. Press Add button to see product price.

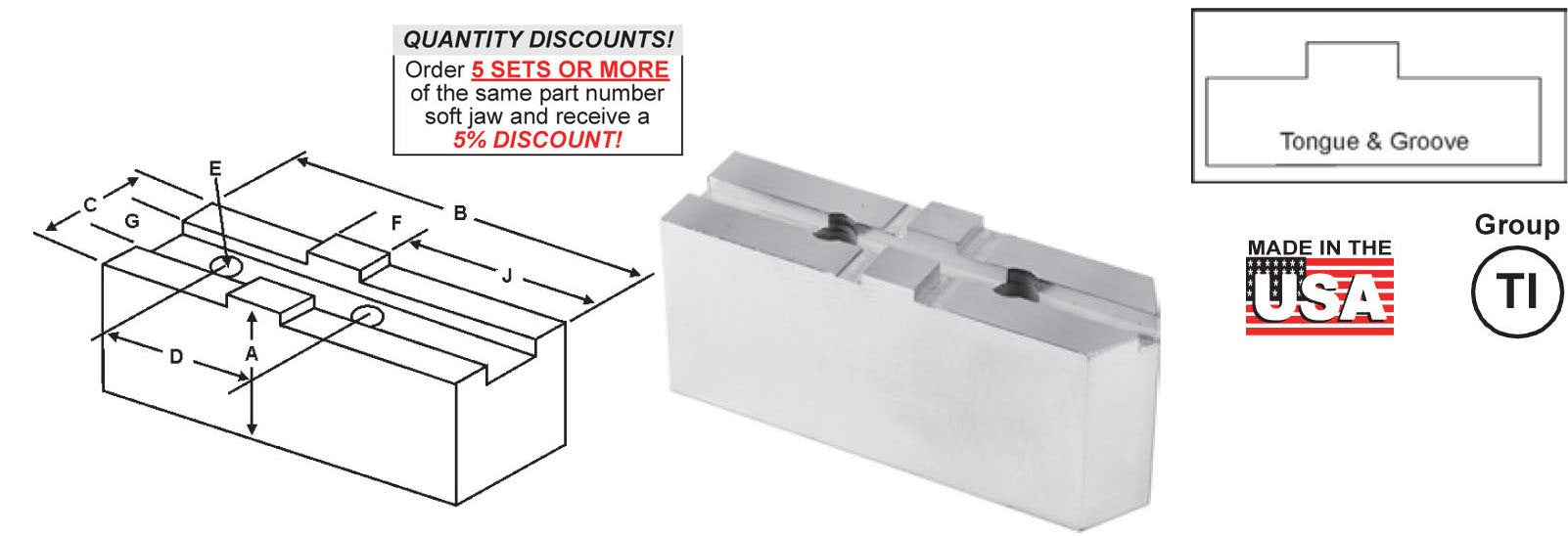

Critical Dimensions ALUMINUM STEEL
Group
No		 Chuck Size Type Groove Width
G		 Tongue Width
F		 Screw Size
E		 Hole Space
D		 Height Inch
A		 Tongue to Front
J		 Tongue Position Length Inch
B		 Width Inch
C		 POINTED END
Part
Number		 POINTED END
Part
Number
TI-25-1/4-11 4 MEDIUM DUTY 0.250 0.437 1/4 1.188 1.250 0.880 Offset 2.000 0.625 TG-4120AP
TG-4120P
TI-31-5/16-12 5 MEDIUM DUTY 0.313 0.500 5/16 1.250 1.500 1.100 Offset 2.375 0.750 TG-5150AP
TG-5150P
2.000 1.100 Offset 2.375 0.750 TG-5200AP
TG-5200P
TI-31-3/8-15 6 MEDIUM DUTY 0.313 0.500 3/8 1.500 1.500 1.350 Centered 3.200 1.000 TG-6153AP
TG-6153P
1.500 1.360 Offset 2.750 1.000 TG-6150AP
TG-6150P
1.500 1.610 Offset 3.000 1.000 TG-6151AP
TG-6151P
1.500 1.813 Offset 3.250 1.000 TG-6151-18AP
TG-6151-18P
2.000 1.350 Centered 3.200 1.000 TG-6203AP
TG-6203P
2.000 1.360 Offset 2.750 1.000 TG-6200AP
TG-6200P
2.500 1.350 Centered 3.200 1.000 TG-6253AP
TG-6253P
2.500 1.690 Offset 3.250 1.500 TG-6252AP
TG-6252P
2.500 1.360 Offset 2.750 1.000 TG-6250AP
TG-6250P
3.000 1.350 Centered 3.200 1.000 TG-6303AP
TG-6303P
3.500 1.350 Centered 3.200 1.000 TG-6353AP
TG-6353P
3.000 1.360 Offset 2.750 1.000 TG-6300AP
TG-6300P
4.000 1.360 Offset 2.750 1.000 TG-6400AP
TG-6400P
TI-31-7/16-15 6 HEAVY DUTY 0.313 0.500 7/16 1.500 1.500 1.260 Offset 2.750 1.250 TG-6155AP
TG-6155P
1.500 Center Centered 2.813 1.500 TG-6158AP
TG-6158P
2.000 1.260 Offset 2.750 1.500 TG-6205AP
TG-6205P
2.500 1.260 Offset 2.750 1.500 TG-6255AP
TG-6255P
2.500 1.750 Offset 3.250 1.500 TG-6256AP
TG-6256P
3.000 1.260 Offset 2.750 1.500 TG-6305AP
TG-6305P
3.500 Center Centered 2.813 1.500 TG-6358AP
TG-6358P
TI-31-3/8-17 8 MEDIUM DUTY 0.313 0.500 3/8 1.750 2.000 2.000 Offset 3.750 1.250 TG-8200AP
TG-8200P
2.000 2.000 Offset 3.750 1.250 TG-8200BP
-
2.000 2.000 Centered 4.500 1.250 TG-8203AP
TG-8203P
2.500 2.000 Offset 3.750 1.250 TG-8250AP
TG-8250P
2.500 2.000 Centered 4.500 1.250 TG-8253AP
TG-8253P
3.000 2.000 Offset 3.750 1.250 TG-8300AP
TG-8300P
3.000 2.000 Offset 3.750 1.250 TG-8300BP
-
3.000 2.000 Centered 4.500 1.250 TG-8303AP
TG-8303P
4.000 2.000 Offset 3.750 1.250 TG-8400AP
TG-8400P
4.000 2.000 Centered 4.500 1.250 TG-8403AP
TG-8403P
5.000 2.000 Offset 3.750 1.250 TG-8500AP
TG-8500P
6.000 2.000 Offset 3.750 1.250 TG-8600AP
TG-8600P
TI-31-1/2-17 8 HEAVY DUTY 0.313 0.500 1/2 1.750 2.000 2.000 Offset 3.750 1.500 TG-8205AP
TG-8205P
2.000 Center Centered 3.313 1.500 TG-8208AP
TG-8208P
3.000 2.000 Offset 3.750 1.500 TG-8305AP
TG-8305P
3.500 Center Centered 3.313 1.500 TG-8358AP
TG-8358P
4.000 2.000 Offset 3.750 1.500 TG-8405AP
TG-8405P
6.000 2.000 Offset 3.750 1.500 TG-8605AP
TG-8605P
TI-31-1/2-17 8 8" W & S 0.313 0.500 1/2 1.750 2.500 1.813 Offset 3.500 1.250 TG-8259AP
TG-8259P
3.000 1.813 Offset 3.500 1.250 TG-8309AP
TG-8309P
TI-50-1/2-21 10 MEDIUM DUTY 0.500 0.750 1/2 2.125 2.00 2.300 Offset 4.500 1.500 TG-10200AP
TG-10200P
2.00 2.300 Offset 4.500 1.500 TG-10200BP
-
2.00 2.300 Offset 4.500 2.000 TG-10202AP
TG-10202P
2.00 2.625 Centered 6.000 2.000 TG-10203AP
TG-10203P
2.50 2.300 Offset 4.500 1.500 TG-10250AP
TG-10250P
3.00 2.300 Offset 4.500 1.500 TG-10300AP
TG-10300P
3.00 2.300 Offset 4.500 2.000 TG-10302AP
TG-10302P
3.00 2.625 Centered 6.000 2.000 TG-10303AP
TG-10303P
4.00 2.300 Offset 4.500 1.500 TG-10400AP
TG-10400P
4.00 2.625 Centered 6.000 2.000 TG-10403AP
TG-10403P
TI-50-5/8-21 10 HEAVY DUTY 0.500 0.750 5/8 2.125 2.00 2.300 Offset 4.500 1.750 TG-10205AP
TG-10205P
2.00 Center Centered 3.938 1.750 TG-10208AP
TG-10208P
2.50 2.300 Offset 4.500 1.750 TG-10255AP
TG-10255P
3.00 2.300 Offset 4.500 1.750 TG-10305AP
TG-10305P
4.00 2.300 Offset 4.500 1.750 TG-10405AP
TG-10405P
4.00 Center Centered 3.938 1.750 TG-10408AP
TG-10408P
2.50 2.125 Offset 4.250 1.750 TG-10259AP
TG-10259P
3.50 2.125 Offset 4.250 1.750 TG-10359AP
TG-10359P
TI-50-1/2-25 12 MEDIUM DUTY 0.500 0.750 1/2 2.500 2.00 2.900 Offset 5.250 1.750 TG-12200AP
TG-12200P
2.00 2.900 Centered 6.550 1.750 TG-12203AP
TG-12203P
2.50 2.900 Offset 5.250 1.750 TG-12250AP
TG-12250P
2.50 2.900 Centered 6.550 1.750 TG-12253AP
TG-12253P
2.50 3.670 Offset 6.000 2.000 TG-12252AP
TG-12252P
2.50 Center Centered 4.500 2.000 TG-12258AP
TG-12258P
3.00 2.900 Offset 5.250 1.750 TG-12300AP
TG-12300P
3.00 2.900 Centered 6.550 1.750 TG-12303AP
TG-12303P
4.00 2.900 Offset 5.250 1.750 TG-12400AP
TG-12400P
4.00 2.900 Centered 6.550 1.750 TG-12403AP
TG-12403P
4.00 3.670 Offset 6.000 2.000 TG-12402AP
TG-12402P
4.00 Center Centered 4.500 2.000 TG-12408AP
TG-12408P
6.00 2.900 Offset 5.250 1.750 TG-12600AP
TG-12600P
6.00 3.670 Offset 6.000 2.000 TG-12602AP
TG-12602P
TI-50-5/8-25 12 12" W & S 0.500 0.750 5/8 2.500 2.50 2.500 Offset 4.875 1.750 TG-12259AP
TG-12259P
4.00 2.500 Offset 4.875 1.750 TG-12409AP
TG-12409P
TI-50-5/8-25 12 HEAVY DUTY 0.500 0.750 5/8 2.500 2.00 2.900 Offset 5.250 2.000 TG-12205AP
TG-12205P
2.50 2.900 Offset 5.250 2.000 TG-12255AP
TG-12255P
2.50 3.670 Offset 6.000 2.000 TG-12256AP
TG-12256P
3.00 2.900 Offset 5.250 2.000 TG-12305AP
TG-12305P
4.00 2.900 Offset 5.250 2.000 TG-12405AP
TG-12405P
4.00 3.670 Offset 6.000 2.000 TG-12406AP
TG-12406P
TI-50-5/8-30 15 MEDIUM DUTY 0.500 0.750 5/8 3.000 1.50 2.900 Offset 5.750 1.750 TG-15150AP
TG-15150P
2.00 2.900 Offset 5.750 1.750 TG-15200AP
TG-15200P
2.50 2.900 Offset 5.750 1.750 TG-15250AP
TG-15250P
2.50 2.900 Offset 6.250 2.000 TG-15252AP
TG-15252P
2.50 Center Centered 5.188 2.500 TG-15258AP
TG-15258P
3.00 2.900 Offset 5.750 1.750 TG-15300AP
TG-15300P
4.00 2.900 Offset 5.750 1.750 TG-15400AP
TG-15400P
4.00 3.350 Offset 6.250 2.000 TG-15402AP
TG-15402P
5.00 Center Centered 5.188 2.500 TG-15508AP
TG-15508P
TI-50-3/4-30 15 15" W&S 0.500 0.750 3/4 3.000 3.50 3.000 Offset 5.750 2.000 TG-15359AP
TG-15359P
5.00 3.000 Offset 5.750 2.000 TG-15509AP
TG-15509P
TI-50-3/4-30 15 HEAVY DUTY 0.500 0.750 3/4 3.000 2.50 2.900 Offset 5.750 1.750 TG-15255AP
TG-15255P
2.50 3.200 Offset 6.000 2.500 TG-15256AP
TG-15256P
3.00 2.900 Offset 5.750 1.750 TG-15305AP
TG-15305P
4.00 2.900 Offset 5.750 1.750 TG-15405AP
TG-15405P
4.00 3.200 Offset 6.000 2.500 TG-15406AP
TG-15406P
TI-50-3/4-30 18 HEAVY DUTY 0.500 0.750 3/4 3.000 2.50 3.660 Offset 6.500 2.250 TG-18250AP
TG-18250P
2.50 3.660 Offset 6.500 2.500 TG-18252AP
TG-18252P
2.50 3.660 Offset 6.500 3.000 TG-18256AP
TG-18256P
3.00 CENTER Centered 5.188 3.000 TG-18308AP
TG-18308P
4.00 3.660 Offset 6.500 2.250 TG-18400AP
TG-18400P
4.00 3.660 Offset 6.500 2.500 TG-18402AP
TG-18402P
5.00 3.660 Offset 6.500 2.250 TG-18500AP
TG-18500P
5.00 3.660 Offset 6.500 2.500 TG-18502AP
TG-18502P
5.00 3.660 Offset 6.500 3.000 TG-18506AP
TG-18506P
5.00 CENTER Centered 5.188 3.000 TG-18508AP
TG-18508P
TI-50-3/4-30 18 18" W&S 0.500 0.750 3/4 3.000 3.50 3.000 Offset 6.000 2.500 TG-18359AP
TG-18359P
5.00 3.000 Offset 6.000 2.500 TG-18509AP
TG-18509P
TI-50-7/8-30 24 HEAVY DUTY 0.500 0.750 7/8 3.000 3.000 4.500 Offset 7.500 3.000 TG-24300AP
TG-24300P
5.000 4.500 Offset 7.500 3.000 TG-24500AP
TG-24500P
