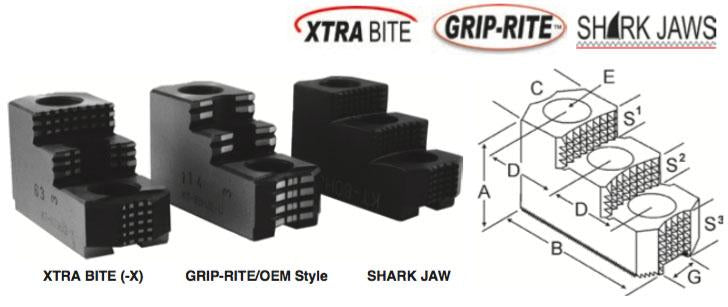

HARD JAWS- 1.5 mm x 60° Serrations

FEATURES:

Designed for first operation roughing, expect standard runout between 0.005-0.010
Reversible-suitable for OD & ID workholding.
XTRA BITE -very aggressive bite. Conical teeth for extra gripping power and ground body to provide improved runout.
GRIP-RITE/OEM Style hard jaws have ground tips and provide better runout.
SHARK JAWS have conical teeth for extra gripping power and black oxide for long life. Ideal for castings and scaly material.Made in the USA.
Bison jaws feature enhanced serrations on gripping surface
1 & 2 step jaws available.

Prices are pulled from our database in real time. Press Add button to see product price.

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width Inch C	OAL Inch B	Height Inch A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-10-14	4/5	0.394 (10mm)	8mm	0.551 (25mm)	0.906	2.087	1.083	3	1	0.394	-	0.672	KT-50HJ1-B	OEM Style	E

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width Inch C	OAL Inch B	Height Inch A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-11-20	6"	0.433 (11mm)	10mm	0.787 (20mm)	1.250	2.900	2.000	3	2	0.500	0.500	1.000	HO-60HJ2	Shark Jaws	D
K1-11-25	6"	0.433 (11mm)	8mm	0.985 (25mm)	1.250	3.000	1.969	3	2	0.500	0.500	0.969	SG-60HJ2-X	Xtra-bite	E
K1-12-20	6"	0.472 (12mm)	10mm	0.787 (20mm)	1.220	2.900	2.000	3	1	0.500	-	1.000	KT-60HJ1	Shark Jaws	D
BB-06, B-06, B-206, BT-06 HS-06 N206					1.220	2.646	1.423	3	1	0.359	-	1.064	KT-60HJ1-U	OEM Style	E
					1.220	2.638	1.417	3	2	0.452	-	0.840	KT-60HJ1-B	OEM Style	E
					1.250	3.000	1.969	3	1	1.000	-	0.969	KT-60HJ1-X	Xtra-bite	E
					1.102	2.252	1.693	3	2	0.394	0.394	0.630	KT-60HJ2-BI	Bison	B
					1.220	2.900	2.000	3	2	0.500	0.500	1.000	KT-60HJ2	Shark Jaws	D
					1.220	2.728	1.740	3	2	0.402	0.402	0.936	KT-60HJ2-U	OEM Style	E
					1.250	3.000	1.969	3	2	0.500	0.500	0.969	KT-60HJ2-X	Xtra-bite	E

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width C	OAL B	Height A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-14-25	8	0.551 (14mm)	12mm	0.984 (25mm)	1.500	3.300	2.000	3	1	0.500	-	1.000	KT-80HJ1	Shark Jaws	D
Kitagawa B-08,B-208, Samchully HS-08 MMK ZA6-8, HA6-8					1.382	3.402	1.669	3	1	0.591	-	1.078	KT-80HJ1-U	OEM Style	E
					1.500	3.500	1.969	3	1	1.030	-	0.938	KT-80HJ1-X	XTRA-BITE	E
					1.500	3.300	2.000	3	2	0.500	0.500	1.000	KT-80HJ2	Shark Jaws	D
					1.378	3.386	2.008	3	2	0.452	0.490	1.080	KT-80HJ2-B	OEM Style	E
					1.378	3.110	1.929	3	2	0.472	0.472	1.024	KT-80HJ2-BI	Bison	B
					1.382	3.409	2.000	3	2	0.465	0.465	1.070	KT-80HJ2-U	OEM Style	E
					1.500	3.500	1.969	3	2	0.530	0.530	0.909	KT-80HJ2-X	XTRA-BITE	E

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width C	OAL B	Height A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-16-25	8	0.630 (16mm)	12mm	0.984 (25mm)	1.500	3.300	2.000	3	2	0.500	0.500	1.000	HO-80HJ2	Shark Jaws	D

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width Inch C	OAL Inch B	Height Inch A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-16-30	10	0.630 (16mm)	12mm	1.181 (30mm)	1.750	4.000	2.000	3	1	0.750	-	1.250	KT-100HJ1	Shark Jaws	D
B-10, B-210, BT-10/210 HA6/8-10, ZA6-10, ZA8-10					1.579	3.980	1.737	3	1	0.635	-	1.102	KT-100HJ1-U	OEM Style	E
					1.575	3.937	2.143	3	2	0.549	0.532	1.102	KT-100HJ2-B	OEM Style	E
					1.750	4.000	2.500	3	2	0.650	0.500	1.350	KT-100HJ2	Shark Jaws	D
					1.579	3.980	2.130	3	2	0.520	0.520	1.090	KT-100HJ2-U	OEM Style	E
					1.750	4.250	2.469	3	2	0.650	0.650	1.169	KT-100HJ2-X	XTRA-BITE	E

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width Inch C	OAL Inch B	Height Inch A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-16-32	10	0.630 (16mm)	12mm	1.266 (32mm)	1.500	4.125	2.000	3	2	0.650	0.500	1.350	MT-100HJ2	Shark Jaws	D

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width Inch C	OAL Inch B	Height Inch A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-18-30	12	0.709 (18mm)	14mm	1.181 (30mm)	1.750	4.600	2.000	3	1	0.750	-	1.250	KT-120HJ1	Shark Jaws	D
B-12, BT-12, HA8-12, MMK-12, ZA8-12					1.969	4.091	2.051	3	1	0.669	-	1.382	KT-120HJ1-U	OEM Style	E
					2.000	4.875	2.469	3	1	1.300	-	1.168	KT-120HJ1-X	XTRA-BITE	E
					1.750	4.600	2.500	3	2	0.650	0.500	1.350	KT-120HJ2	Shark Jaws	D
					2.000	4.042	2.480	3	2	0.543	0.442	1.495	KT-120HJ2-U	OEM Style	E
					2.000	4.875	2.469	3	2	0.650	0.650	1.169	KT-120HJ2-X	XTRA-BITE	E

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width Inch C	OAL Inch B	Height Inch A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-21-30	12	0.827 (21mm)	16mm	1.181 (30mm)	2.000	4.042	2.480	3	1	0.543	-	1.937	KT-128HJ1-U	OEM Style	E
B-212 BT-212					1.969	4.055	2.047	3	1	0.669	-	1.378	KT-128HJ1-B	OEM Style	E
					1.750	4.600	2.500	3	2	0.650	0.500	1.350	KT-128HJ2	Shark Jaws	D
					1.772	4.016	2.284	3	2	0.669	0.669	1.378	KT-128HJ2-BI	Bison	B
					2.000	4.042	2.480	3	2	0.543	0.442	1.495	KT-128HJ2-U	OEM Style	E
					2.000	4.875	2.469	3	2	0.650	0.650	1.169	KT-128HJ2-X	XTRA-BITE	E

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width Inch C	OAL Inch B	Height Inch A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-22-43	15 & 18	0.866 (22mm)	20mm	1.693 (43mm)	2.500	5.400	3.000	3	2	0.730	0.730	1.540	KT-150HJ2	Shark Jaws	D
B-15, B-18, N215/18 PC-15-120 HAH/HCH 15					2.448	5.850	3.385	3	2	0.827	0.827	1.731	KT-150HJ2-U	OEM Style	E
					2.500	5.500	3.500	3	2	0.950	0.950	1.600	KT-150HJ2-X	XTRA-BITE	E
					2.441	5.850	3.386	3	2	0.810	0.810	1.811	KT-150HJ2-B	OEM Style	E

		Critical Dimensions
Group Number	Chuck Size	Groove Width G	Screw Size E	Hole Space D	Width C	OAL B	Height A	No. of Holes	No. of Steps	Top Step Ht S1	Mid Step Ht S2	Bot Step Ht S3	Part Number	Style	Code
K1-26-43	15 & 18	1.005 (25.5mm)	20mm	1.690	2.500	5.400	3.000	3	2	0.730	0.730	1.540	KT-151HJ2	Shark Jaws	D
B-215 N18, N15				1.693 (43mm)	2.448	5.850	3.385	3	2	0.827	0.827	1.731	KT-151HJ2-U	OEM Style	E
B-215 N18, N15				1.693 (43mm)	2.500	5.500	3.500	3	2	0.950	0.950	1.600	KT-151HJ2-X	XTRA-BITE	E
