Jaw Boring Rings, Universal Lathe Spindle & Collet Stops, CNC Lathe Stops

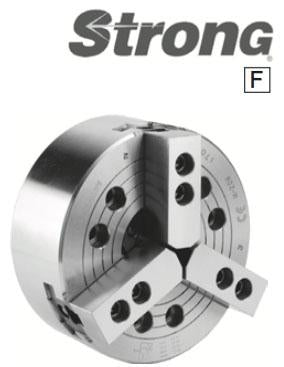

N-200A SERIES 3 JAW CHUCKS
CNC Hydraulic Power Chucks

STRONG Chucks are interchangeable with industry standard 1.5mm x 60° serration chucks
Approx. 20% higher speed, higher gripping force and larger bore compared with usual chucks
Manufactured from high grade alloy steel
All sliding surfaces are hardened and ground for accuracy and repeatability
Chucks include all mounting hardware

Run-Out Problems? It May Be Time To Replace Your Chuck!
*Kitagawa is a registered trademark of Kitagawa NorthTech.

Prices are pulled from our database in real time. Press Add button to see product price.

Chuck Size	Chuck Model	Chuck Dia.	Thru-hole Dia.	Spindle Mount	Part Number	Chuck Cross Reference
6"	N206	6.654"	1.772"	A2-4 A2-5	K-206A04-N-B K-206A05-N-B	B206, ATL6,HS-06
8"	N208	8.268"	2.047"	A2-5 A2-6	K-208A05-N-B K-208A06-N-B	B208, ATL8,HS-08
10"	N210	10.000"	2.953"	A2-6 A2-8	K-210A06-N-B K-210A08-N-B	B210, ATL10,HS-10
12"	N212	11.969"	3.585"	A2-6 A2-8	K-212A06-N-B K-212A08-N-B	B212, ATL12,HS-12

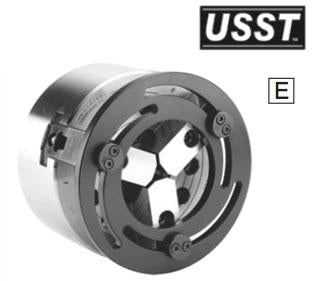

JAW BORING RINGS
No need to look all over the shop for a setup piece and waste time. Our jaw boring ring is essential for boring soft jaws and round jaws.
FEATURES:

Ideal for machining soft jaws.
Attaches quickly without tools.
Applies equal pressure on all jaws.
Attaches to front of jaws, compensating for "jaw lift."
Since no discs or bungs are used to clamp jaws, through boring of jaws is possible.

Save Set-Up Time!
Jaw Boring Ring (comes complete with 3 pin assemblies)

Prices are pulled from our database in real time. Press Add button to see product price.

Chuck Dia	ID Inch	OD Inch	Pin Depth	Pin Dia	Part Number
6" 8" 10" 12" 15"	3.250 3.500 5.900 7.475 8.900	6.825 8.450 10.150 12.075 15.230	0.350" 0.350" 0.350" 0.400" 0.600"	0.512" 0.562" 0.709" 0.709" 0.938"	JBR-06 JBR-08 JBR-10 JBR-12 JBR-15

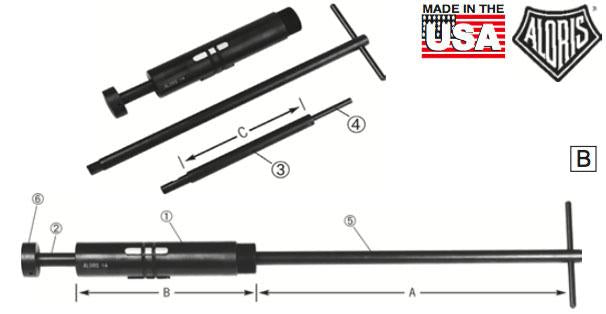

UNIVERSAL LATHE SPINDLE & COLLET STOPS
For CNC, Manual Lathes & Indexing Heads

Completely self-centering
Installs in seconds!
Greater rigidity insures duplication
Cannot vibrate or change position once it is locked
Rejections cut to a minimum

Fully Adjustable To Fit A Wide Variety Of Applications!

Prices are pulled from our database in real time. Press Add button to see product price.

A	B	C	Spindle Size	Part Number
12-1/4" 19" 21-1/2" 22-1/4"	4-1/2" 6-7/16" 7-7/8" 9-1/4"	6" 6-1/2" 10-1/2" 10-1/2"	1" - 1-1/4" 1-5/16" - 1-11/16" 1-3/4" - 2-7/16" 2-1/2" - 3-1/2"	ALOR-S1 ALOR-S2 ALOR-S3 ALOR-S4

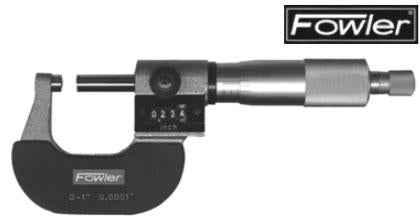

DIGIT COUNTER MICROMETERS

Digital counter
Resolution: .0001" (using vernier)
Microfine graduations on satin chrome
Carbide tipped measuring faces
Positive locking nut on spindle
Sizes over 1" include standard

Prices are pulled from our database in real time. Press Add button to see product price.

Range	Part Number
0-1" 1-2" 2-3" 3-4"	FOW-A52-224-001 FOW-A52-224-002 FOW-A52-224-003 FOW-A52-224-004

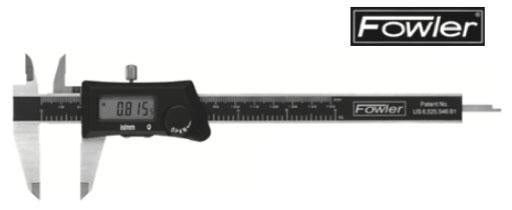

DIGITAL CALIPERS

Direct inch/metric conversion.
Resolution:.0005"/.01mm
Large easy-to-read LCD display.
Includes shop hardened case.

Prices are pulled from our database in real time. Press Add button to see product price.

Range	Accuracy	Part Number
0—6" 0—8" 0—12"	.001"/.02mm .0015"/.03mm .0015"/.03mm	FOW-A54-1000002 FOW-A54-1000082 FOW-A54-1001122
Replacement Battery		FOW-A54-100-350

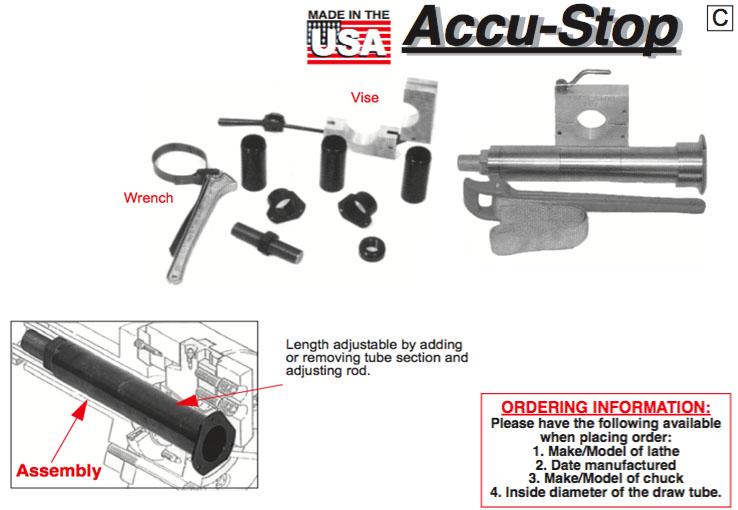

CNC LATHE STOPS

Ensures accuracy/repeatability within .0005"
Heavy duty and highly accurate
Replaces inaccurate and expensive stopping mechanisms
Precise, easy to use and inexpensive stop for CNC lathes

The Accu-Stop Assembly is constructed of low carbon steel coated with zinc oxide for lasting strength and durability. The faceplate of the assembly mounts to the front of a draw tube style manual or power chuck, while the extension tubes extend back into the draw tube to accommodate work pieces of any length. The Accu-Stop bolts to the front of the chuck, allowing your work piece and the stop to turn together, eliminating friction damage. Easily pays for itself in just a few jobs by eliminating the time it takes to use the turret to locate your work piece!
Assembly Includes:
Face Plate, Sub Face Plate, Three Extension Tubes, End Cap, Lock Nut and Threaded Adjustment Rod
PACKAGE INCLUDES:
Complete Assembly, Accu-Stop Special Vise & Strap Wrench
ORDERING INFORMATION:
Please have the following available when placing order:

Make/Model of lathe
Date manufactured
Make/Model of chuck
Inside diameter of the draw tube.

Prices are pulled from our database in real time. Press Add button to see product price.

Chuck Size	Description	Part Number
6"	Assembly 16.5"	AS-1000
	Package - Deluxe	AS-P1000
	Extra Tube (5" Long)	AS-1003
	Tubing stop option*	AS-TSO1000
8"	Assembly 16.5"	AS-2000
	Package - Deluxe	AS-P2000
	Extra Tube (5" Long)	AS-2003
	Tubing stop option*	AS-TSO2000
10"	Assembly 16.5"	AS-3000
	Package - Deluxe	AS-P3000
	Extra Tube (5" Long)	AS-3003
	Tubing stop option*	AS-TSO3000
12"	Assembly 20.25" (under 3" dia drawtube)	AS-4000SB
	Assembly 20.25" (under 3" dia drawtube)	AS-4000LB
	Package - Deluxe (under 3" dia drawtube)	AS-P4000SB
	Package - Deluxe (over 3" dia drawtube)	AS-P4000LB
	Extra Tube (6" Long)	AS-4003SB
	Tubing stop option*	AS-TSO4000

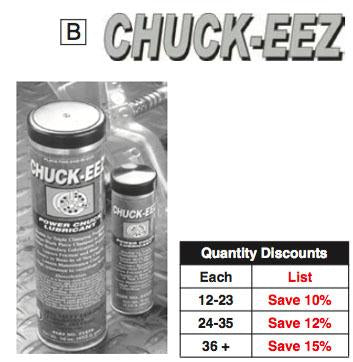

POWER CHUCK LUBRICANT
FEATURES:

Double to Triple Clamping Pressure.
Keeps Work Piece Clamped in Place.
Provides Boundary Lubrication Protection.
Lowers Friction and Wear.
Assists in Wear-In of New Chucks
Lowers Maintenance Costs.
High Resistance to Centrifuge Force.

For Best Results, Grease Your Chuck Once Per Shift!
The More You Buy, The More You SAVE!

Prices are pulled from our database in real time. Press Add button to see product price.

Container Size	Case Qty	Part Number
4 Oz Cartridge	24	EZ-21471
4 Oz Cartridge w/ grease gun	each	EZ-OKIT-21471
16 Oz Cartridge	12	EZ-21478
10 Lb Pail	each	EZ-21444
40 Lb Pail	each	EZ-21445
135 Lb Keg	each	EZ-21446
450 Lb Drum	each	EZ-21448
