Interchangeable Head VDI

Interchangeable Head VDI
Our new line of Interchangeable Head Boring System VDI Toolholders are designed to fit your Kennametal Bolt-on Boring Heads. The DIN 69 880 VDI Toolholder will accept a Kennametal style LP-series Boring Head with internal coolant capabilities.

These toolholders are designed to increase your productivity in boring applications and maintain higher quality surface finishes as a result of a more statically stable tool. Eliminates a joint in tool set-ups which have been known to show performance increases up to 20% to 30%.

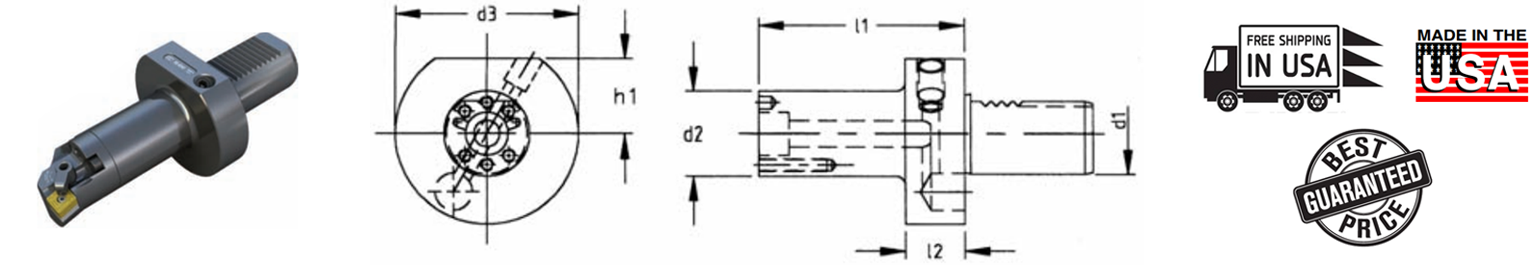

d1	d2 inch	d3	L1	L2	h1	Part Number	Price
30	1-1/4	68	75	22	28	CNC86 58.3032-3 Add	CALL
30	1-1/4	68	100	22	28	CNC86 58.3032-4 Add	CALL
30	1-1/4	68	125	22	28	CNC86 58.3032-5 Add	CALL
30	1-1/2	68	75	22	28	CNC86 58.3040-3 Add	CALL
30	1-1/2	68	100	22	28	CNC86 58.3040-4 Add	CALL
30	1-1/2	68	125	22	28	CNC86 58.3040-5 Add	CALL
40	1-1/4	83	75	22	31	CNC86 58.4032-3 Add	CALL
40	1-1/4	83	100	22	31	CNC86 58.4032-4 Add	CALL
40	1-1/4	83	125	22	31	CNC86 58.4032-5 Add	CALL
40	1-1/2	83	75	22	31	CNC86 58.4040-3 Add	CALL
40	1-1/2	83	100	22	31	CNC86 58.4040-4 Add	CALL
40	1-1/2	83	125	22	31	CNC86 58.4040-5 Add	CALL
50	1-1/4	98	75	30	35	CNC86 58.5032-3 Add	CALL
50	1-1/4	98	100	30	35	CNC86 58.5032-4 Add	CALL
50	1-1/4	98	125	30	35	CNC86 58.5032-5 Add	CALL
50	1-1/2	98	75	30	35	CNC86 58.5040-3 Add	CALL
50	1-1/2	98	100	30	35	CNC86 58.5040-4 Add	CALL
50	1-1/2	98	125	30	35	CNC86 58.5040-5 Add	CALL
