HC Soft Jaws

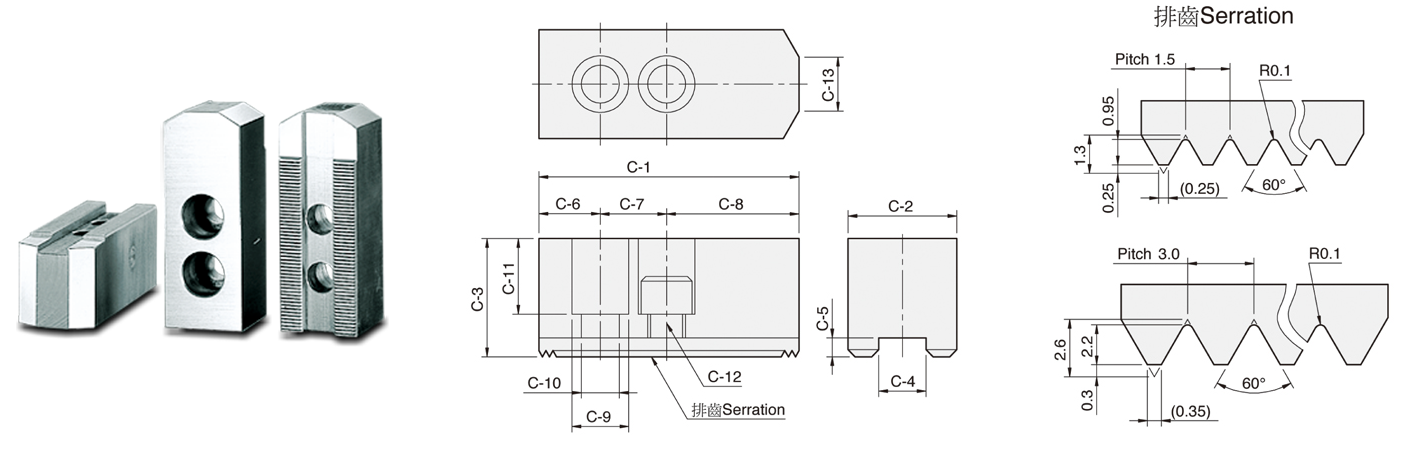

Soft jaw for hydraulic power chuck

Soft jaws for hydraulic power chucks.
Soft jaw for CNC lathe.

C-1	C-2	C-3	C-4	C-5	C-6	C-7	C-8	C-9	C-10	C-11	C-12	C-13	Serration Pitch	Matching Chuck	3 Jaw Weight (kg)	DIM Part Number	Price Each
53	23	23	10	5	9	14	30	14	9	14	M8	3	1.5x60°	N-204	0.45	HC04	Call or Email
62	25	30	10	5	9	14	39	14	9	21	M8	5	1.5x60°	N-205	0.7	HC05	Call or Email
73	31	36	12	5	15	20	38	17	11	21	M10	14	1.5x60°	N-206, NB-306, V-206	1.5	HC06	Call or Email
95	35	37	14	5	24	25	46	19	13	22	M12	16	1.5x60°	N-208, NB-208, V-208	2.4	HC08	Call or Email
110	40	42	16	5	30	30	50	19	13	27	M12	18	1.5x60°	N-210, NB-210, V-210	3.7	HC10	Call or Email
130	50	50	21	5	39	30	61	25	17	33	M16	23	1.5x60°	N-212, NB-212	6.5	HC12	Call or Email
165	62	62	22	8	37	43	85	32	21	38	M20	---	1.5x60°	N-215, N-218, NB-215, NB-218	12.5	HC15	Call or Email
95	35	37	12	5	24	20	51	17	11	21	M10	14	1.5x60°	NHT-208	2.4	HC08-1	Call or Email
130	50	50	18	5	39	30	61	23	15	30	M14	23	1.5x60°	V-212, V-212R	6.6	HC12-1	Call or Email
165	62	62	25.5	5	37	43	85	32	21	38	M20	---	1.5x60°	V-215, V-218, V-215R, V-218R	12.5	HC15-1	Call or Email
180	64	70	25	9	40	60	80	32	21	45	M20	---	3.0x60°	N-220, N-224, V-221, V-224 V-221R, V-224R	15.8	HC24-1	Call or Email
210	74	90	25	9	40	80	90	32	21	65	M20	---	3.0x60°	V-232	29.2	HC32-1	Call or Email
156	64	70	26	9	34	50	72	32	21	45	M20	---	3.0x60°	V-215(P3.0).V-218(P3.0)	13.4	HC15-2	Call or Email

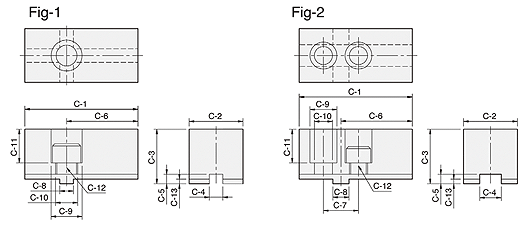

Soft jaw for draw down power chuck

C-1	C-2	C-3	C-4	C-5	C-6	C-7	C-8	C-9	C-10	C-11	C-12	C-13	Matching Chuck	3 Jaw Weight (kg)	Reference	DIM Part Number	Price Each
70	35	34	10	6	43	---	10	23	15.5	21	M14	2.5	DR-06	1.5	Fig-1	DR-06	Call or Email
84	40	44.5	16	7	53	26	12	20	13.5	29	M12	3.5	DR-08	2.7	Fig-2	DR-08	Call or Email

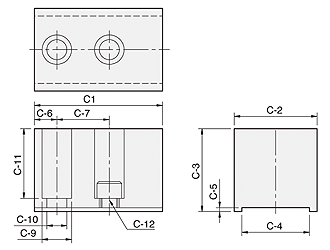

Soft jaw for ball swing lock chuck

C-1	C-2	C-3	C-4	C-5	C-6	C-7	C-9	C-10	C-11	C-12	Matching Chuck	3 Jaw Weight (kg)	DIM Part Number	Price Each
108	70	70	57.1	3.3	19	44.45	25	17	59	M16	BL-12	10.6	BL-12	Call or Email

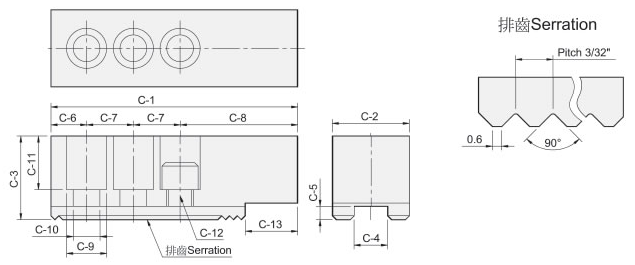

Soft jaws for pneumatic power chuck

C-1	C-2	C-3	C-4	C-5	C-6	C-7	C-8	C-9	C-10	C-11	C-12	C-13	Matching Chuck	3 Jaw Weight (kg)	DIM Part Number	Price Each
205	60	60	25.5	6	25	38	104	32	21	44	M20	55	PB-ES600	13.5	PB600	Call or Email
320	80	80	30	7	35	60	165	38	26	53	M24	110.5	PB-ES850	40.2	PB850	Call or Email
