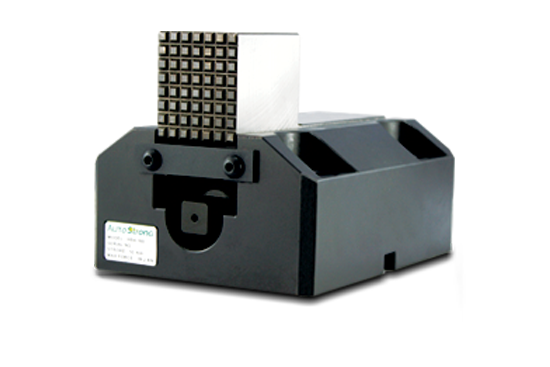

HB4
- Clamping of workpiece for larger size lathe, vertical lathe, die set with jig.
- One set of 4-piece with T-bolt.
| Jaw Stroke (mm) |
Max. Gripping Force (kN) |
Weight (kg) |
SPEC Part Number | Price Each |

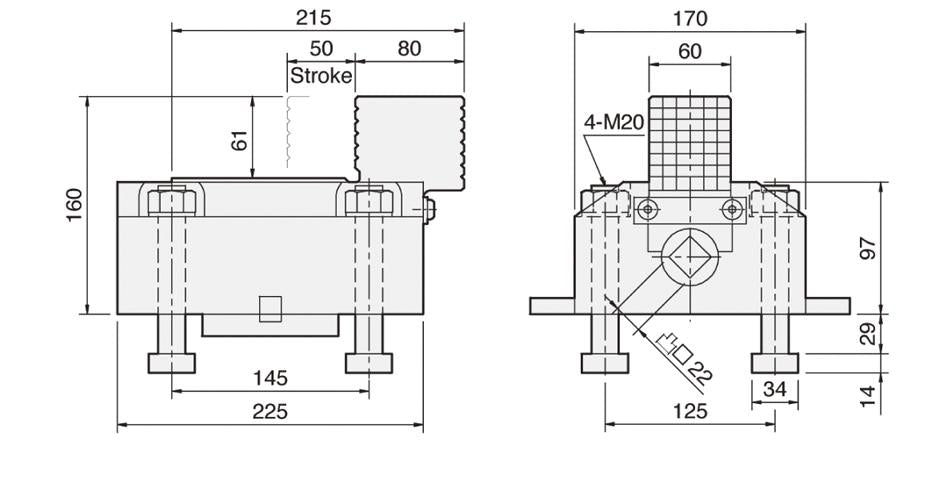

| 50 | 39.2 | 29 | HB4-160 | Call or Email |
| Jaw Stroke (mm) |
Max. Gripping Force (kN) |
Weight (kg) |
SPEC Part Number | Price Each |

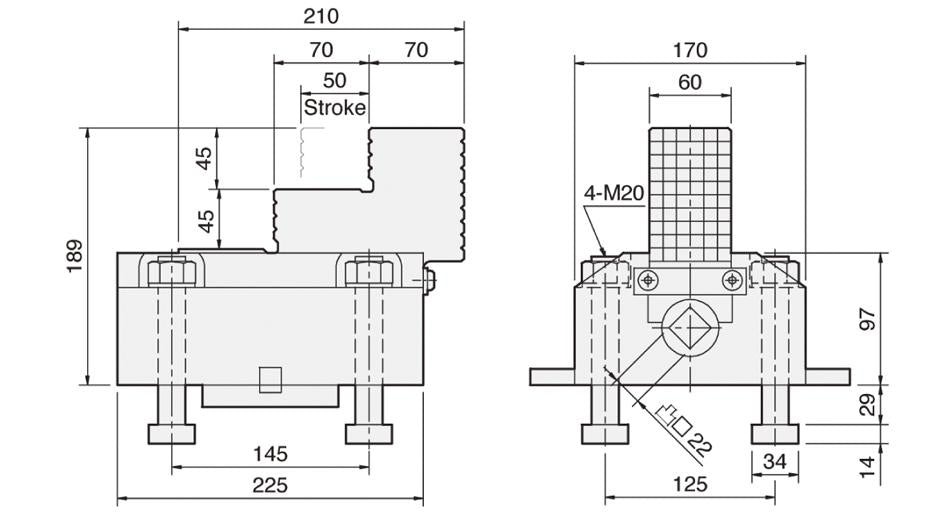

| 50 | 39.2 | 31 | HB4-189 | Call or Email |
| Jaw Stroke (mm) |
Max. Gripping Force (kN) |
Weight (kg) |
Matching Soft Jaw |
SPEC Part Number | Price Each |

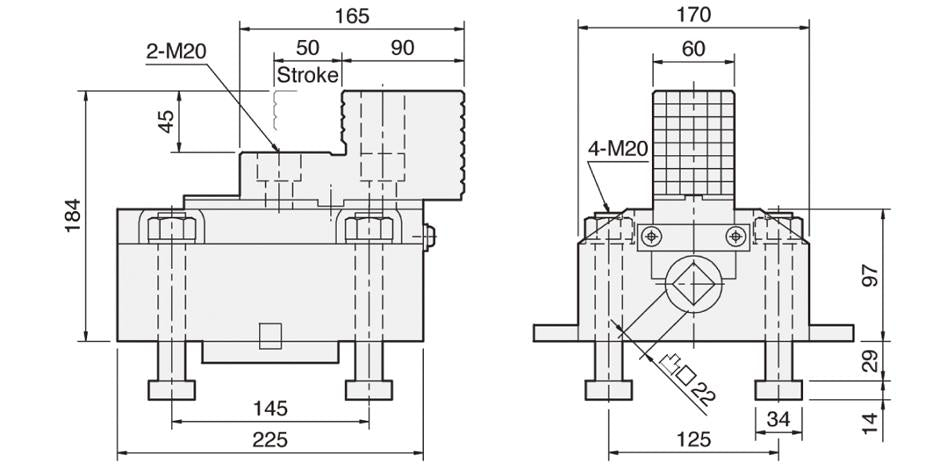

| 50 | 39.2 | 31 | HE2486 | HB4-2P | Call or Email |
