Haas Tool Blocks

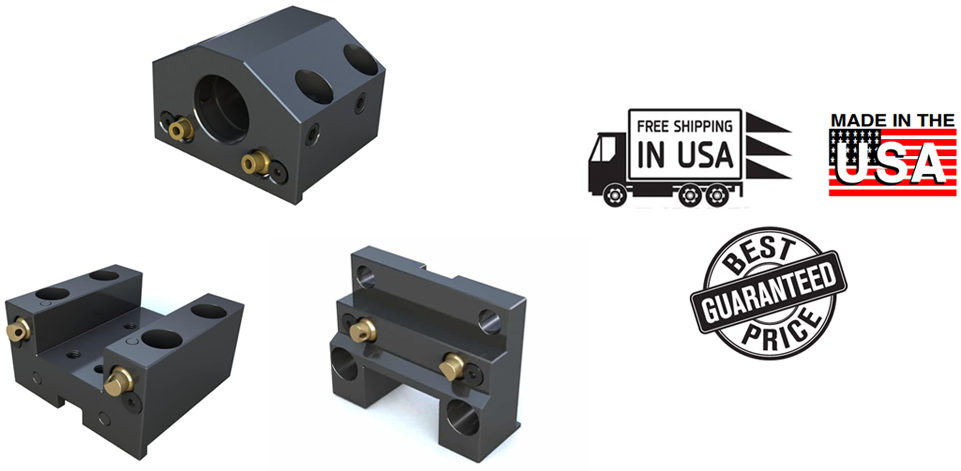

Tool Block Features
- Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
- Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
- Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
- Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
- Components Included: Wedges, Coolant Nozzles and Set Screws.
- Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
- Made in the USA.
- VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
- ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
- Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
- More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
| Bolt Hole Pattern: 64mm x 50mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| ST20, DS30, ST30SS | 0.75" | 40mm | HST20-8420 | HST20-8311A .75" Sq. | HST20-8411A .75" Sq. | CALL |
| 1" | 40mm | HST20-8425 | CALL | |||
| 1.25" | 40mm | HST20-8432 | CALL | |||
| 1.5" | 40mm | HST20-8435 | CALL | |||
| 2" | 40mm | HST20-8436 | CALL |
| Bolt Hole Pattern: 70mm x 45mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| SL-10, ST10, HT10 | 0.75" | 1" | HSL10-8420 | HSL10-8311A .75" Sq. | HSL10-8411A .75" Sq. | CALL |
| 1" | 1" | HSL10-8425 | CALL | |||
| 1.25" | 1" | HSL10-8432 | CALL | |||
| 1.5" | 1" | HSL10-8435 | CALL |
| Bolt Hole Pattern: 80mm x 45mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| SL20, SL30, ST30, ST31, TL15, TL25 | 1" | 1.25" | HSL30-8425 | HSL30-8311 1" Sq. | HSL30-8411 1" Sq. | CALL |
| 1.25" | 1.25" | HSL30-8432 | CALL | |||
| 1.5" | 1.25" | HSL30-8435 | CALL | |||
| 1.75" | 1.25" | HSL30-8445 | CALL | |||
| 2" | 1.35" | HSL30-8436 | CALL | |||
| 2.5" | 1.35" | HSL30-8437 | CALL |
| Bolt Hole Pattern: 105mm x 70mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| SL-40 | 2" | 1.625" | HSL40-8436 | HLS40-8311B 1.25" Sq. | HSL40-8411B 1.25" Sq. | CALL |
| 2.5" | 1.625" | HSL40-8437 | CALL |
