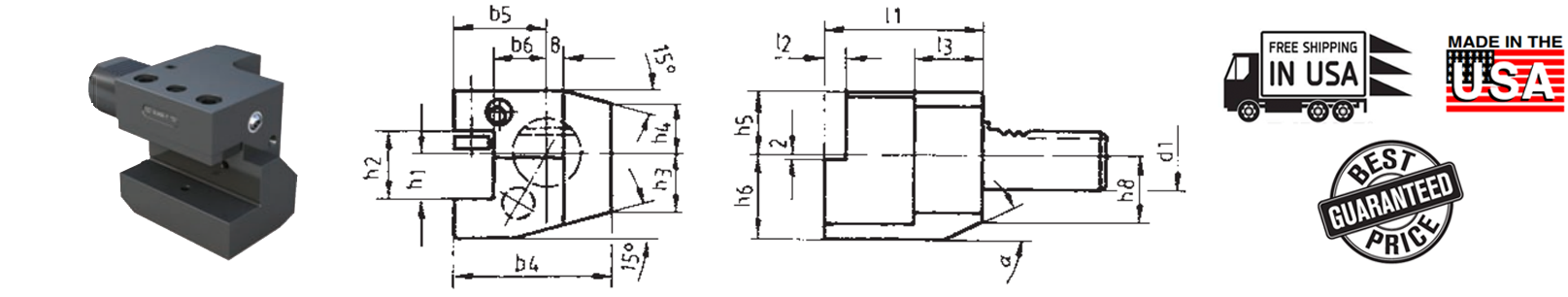

Form C2 Square Tool Left-Hand

Turning Toolholder – Form C2
Square Tool Left-Hand

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.

d1	b4	b5	b6	h1 in	h1 mm	h2	h3	h4	h5	h6	h8	L1	L2	L3	α	Part Number
16	43	24	13	1/2	12	17	15	15	20	22	18	44	5	20	30	CNC86 32.1612
20	65	40	26	5/8	16	22	19	19	25	30	23	55	7	30	30	CNC86 32.2016
25	58	33	19	5/8	16	22	22.5	22.5	25	30	25	55	7	30	30	CNC86 32.2516
30	76	41	23	3/4	20	29	26	22	28	38	30	70	10	30	30	CNC86 32.3020
40	93	50.5	25.5	1	25	34	35	30	32.5	48	42	85	12.5	30	25	CNC86 32.4025
50	105	55	30.5	1.25	32	41	42	35	35	60		100	16	40	30	CNC86 32.5032
60	125	62.5	32.5	1.25	32	41	46	42.5	42.5	62.5		125	16	40		CNC86 32.6032
80	160	80	41	1.5	40	53	60	55	55	80		160	20	40		CNC86 32.8040
