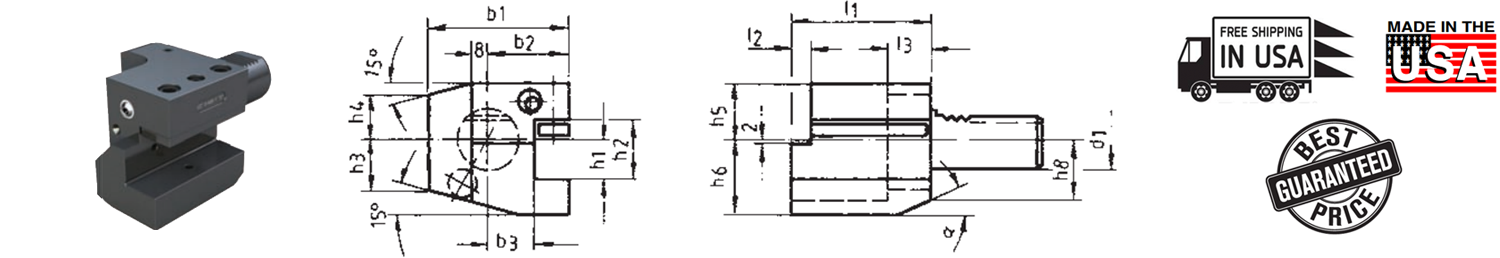

Form C1 Square Tool Right-Hand

Turning Toolholder – Form C1
Square Tool Right-Hand

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.

d1	b1	b2	b3	h1 in	h1 mm	h2	h3	h4	h5	h6	h8	L1	L2	L3	α	Part Number
16	43	24	13	1/2	12	17	15	15	20	22	18	44	5	20	30	CNC86 31.1612
20	52	27	13	5/8	16	22	19	19	25	30	23	55	7	30	30	CNC86 31.2016
20	65	40	26	5/8	16	22	19	19	25	30	23	55	7	30	30	CNC86 31.2016.1
25	58	33	19	5/8	16	22	22.5	22.5	25	30	25	55	7	30	30	CNC86 31.2516
30	70	35	17	3/4	20	29	26	22	28	38	30	70	10	30	25	CNC86 31.3020
30	77	42	17	1	25	34	32	22	25	48	40	70	10	30	25	CNC86 31.3025
40	85	42.5	20.5	1	25	34	35	30	32.5	48	42	85	12.5	30	30	CNC86 31.4025
50	100	50	26	1	25	34	42	35	35	60		100	16	40		CNC86 31.5025
50	100	50	25.5	1.25	32	41	42	35	35	60		100	16	40		CNC86 31.5032
60	125	62.5	32.5	1.25	32	41	46	42.5	42.5	62.5		125	16	40		CNC86 31.6032
80	160	80	41	1.5	40	53	60	55	55	80		160	20	40		CNC86 31.8040
