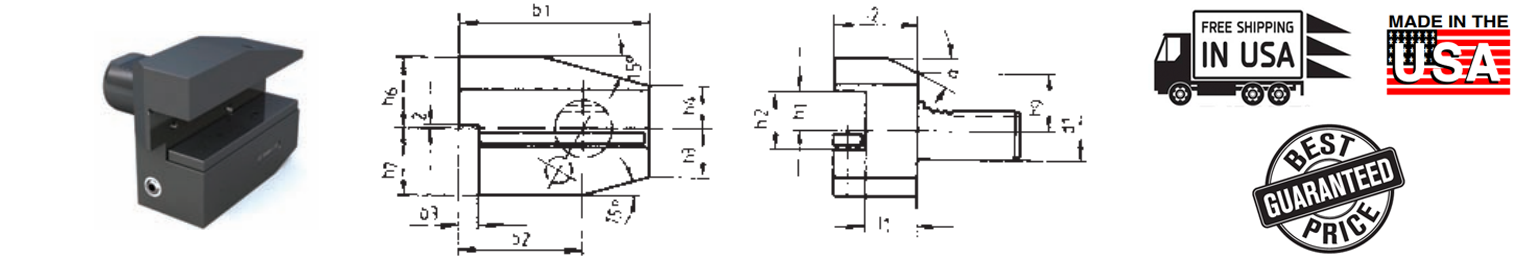

Form B8 Left-Hand Long-Inverted

Turning Toolholder – Form B8
Left-Hand Long-Inverted

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.

d1	b1	b2	b3	h1 in	h1 mm	h2	h3	h4	h6	h7	h9	L1	L2	α	Part Number
16	58	39	5	1/2	12	17	15	15	22	20	18	13	24	30	CNC86 28.1612
16	58	39	5	1/2	12	17	15	15	22	20	18	23	34	30	CNC86 28.1612.1
20	75	50	7	5/8	16	22	19	19	30	25	23	16	30	30	CNC86 28.2016
20	75	50	7	5/8	16	22	19	19	30	25	23	26	40	30	CNC86 28.2016.1
25	75	50	7	5/8	16	22	22.5	22.5	30	25	25	16	30	30	CNC86 28.2516
25	75	50	7	5/8	16	22	22.5	22.5	30	25	25	26	40	30	CNC86 28.2516.1
30	100	65	10	3/4	20	29	26	22	38	35	28	22	40	25	CNC86 28.3020
30	100	65	10	3/4	20	29	26	22	38	35	28	42	60	25	CNC86 28.3020.1
30	100	65	10	1	25	34	35	30	48	42	40	22	47	25	CNC86 28.3025
40	118	75.5	12.5	1	25	34	42	35	60	50	32.5	22	44		CNC86 28.4025
50	130	80	16	1	25	34	42	35	60	50		30	55		CNC86 28.5025
50	130	80	16	1-1/4	32	41	42	35	60	50		30	55	30	CNC86 28.5032
60	145	82.5	16	1-1/4	32	41	46	42.5	62.5	62.5		30	60		CNC86 28.6032
80	190	110	20	1-1/2	40	53	60	55	80	80		40	75		CNC86 28.8040
