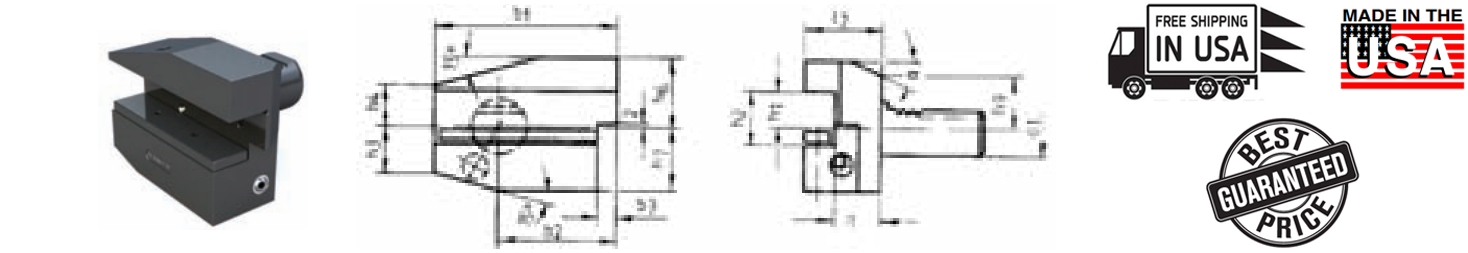

Form B7 Right-Hand Long-Inverted

Turning Toolholder – Form B7
Right-Hand Long-Inverted

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.

d1	b1	b2	b3	h1 in	h1 mm	h2	h3	h4	h6	h7	h9	L1	L2	α	Part Number
16	58	39	5	1/2	12	17	15	15	22	20	18	13	24	30	CNC86 27.1612
16	58	39	5	1/2	12	17	15	15	22	20	18	23	34	30	CNC86 27.1612.1
20	75	50	7	5/8	16	22	19	19	30	25	23	16	30	30	CNC86 27.2016
20	75	50	7	5/8	16	22	19	19	30	25	23	26	40	30	CNC86 27.2016.1
25	75	50	7	5/8	16	22	22.5	22.5	30	25	25	16	30	30	CNC86 27.2516
25	75	50	7	5/8	16	22	22.5	22.5	30	25	25	26	40	30	CNC86 27.2516.1
30	100	65	10	3/4	20	29	26	22	38	35	28	22	40	25	CNC86 27.3020
30	100	65	10	3/4	20	29	26	22	38	35	28	42	60	25	CNC86 27.3020.1
30	100	65	10	1	25	34	26	28	44	35	40	22	47	25	CNC86 27.3025
40	118	75.5	12.5	1	25	34	35	30	48	42.5	32.5	30	44	30	CNC86 27.4025
50	130	80	16	1	25	34	42	35	60	50		30	55		CNC86 27.5025
50	130	80	16	1-1/4	32	41	42	35	60	50		22	55		CNC86 27.5032
60	145	82.5	16	1-1/4	32	41	46	42.5	62.5	62.5	42.5	30	60		CNC86 27.6032
80	190	110	20	1-1/2	40	53	60	55	80	80		40	75		CNC86 27.8040
