Form B2 Left-Hand Short

Turning Toolholder – Form B2
Left-Hand Short

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.

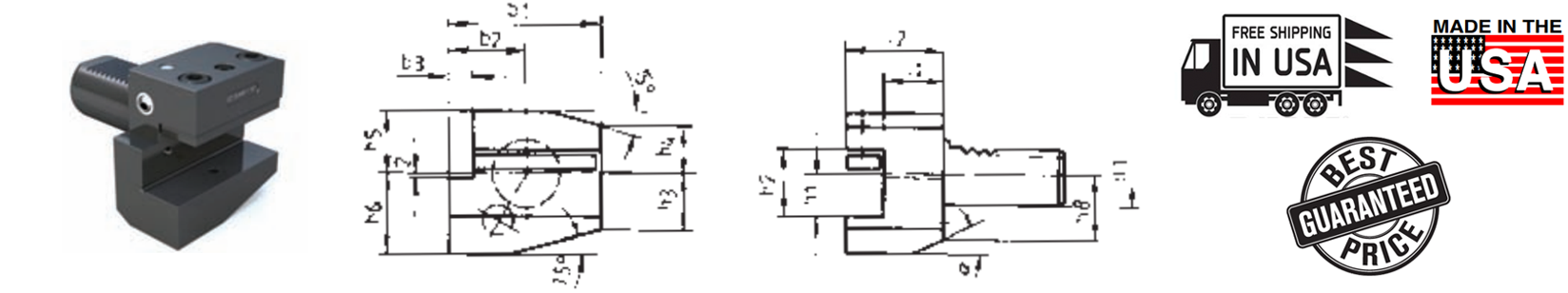

d1	b1	b2	b3	h1 in	h1 mm	h2	h3	h4	h5	h6	h8	L1	L2	α	Part Number
16	42	23	5	1/2	12	17	15	15	20	22	18	13	25	30	CNC86 22.1612
16	42	23	5	1/2	12	17	15	15	20	22	18	23	35	30	CNC86 22.1612.1
20	55	30	7	5/8	16	22	19	19	25	30	23	16	31	30	CNC86 22.2016
20	55	30	7	5/8	16	22	19	19	25	30	23	26	41	30	CNC86 22.2016.1
25	55	30	7	5/8	16	22	22.5	22.5	25	30	25	16	31	30	CNC86 22.2516
25	55	30	7	5/8	16	22	22.5	22.5	25	30	25	26	41	30	CNC86 22.2516.1
30	70	35	10	3/4	20	29	26	22	28	38	30	42	40	25	CNC86 22.3020
30	70	35	10	3/4	20	29	26	22	28	38	30	42	60	25	CNC86 22.3020.1
30	70	35	10	1	25	34	28	26	32	48	43	22	47	25	CNC86 22.3025
40	85	42.5	12.5	1	25	34	35	30	32.5	48	42	22	47	30	CNC86 22.4025
50	100	50	16	1	25	34	42	35	35	60		30	55		CNC86 22.5025
50	100	50	16	1-1/4	32	41	42	35	35	60		30	61		CNC86 22.5032
60	125	62.5	16	1-1/4	32	41	46	42.5	42.5	62.5		30	60		CNC86 22.6032
80	160	80	20	1-1/2	40	53	60	55	55	80		40	78		CNC86 22.8040
