ER 11 Coolant Collets

Accu-Collets & Lyndex ER COLLETS
ER INCH & METRIC COOLANT COLLETS

Unique patented design is solid steel construction ensuring longer life.
No discs, plugs or other hardware needed.
Accu-Collets have rubber plugs
Maximum pressure of 1000 psi.
Drill insertion does not need to be longer than the collet length.
Lyndex coolant style ER collets feature a unique patented design which staggers the slots to prevent coolant from reaching the face of the collet.

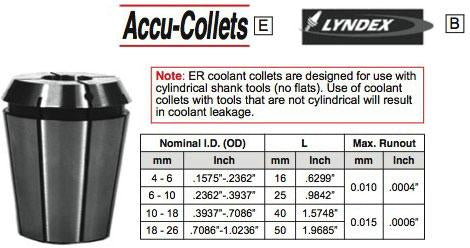

Note ER coolant collets are designed for use with cylindrical shank tools (no flats). Use of coolant collets with tools that are not cylindrical will result in coolant leakage.

			Accu-Collets	Lyndex
Frac	MM	Dec.
-	3.0	0.1180	11-0118-3.0C	-
1/8	-	0.1250	11-0125-1/8C	-
-	3.5	0.1380	11-0138-3.5C	-
9/64	-	0.1400	11-0140-9/64C	-
5/32	-	0.1560	11-0156-5/32C	-
-	4.0	0.1570	11-0157-4.0C	11-0157-4.0CL
11/64	-	0.1710	11-0171-11/64C	-
-	4.5	0.1770	11-0177-4.5C	11-0177-4.5CL
3/16	-	0.1870	11-0187-3/16C	11-0187-3/16CL
-	5.0	0.1960	11-0196-5.0C	11-0196-5.0CL
13/64	-	0.2030	11-0203-13/64C	11-0203-13/64CL
-	5.5	0.2170	11-0217-5.5C	11-0217-5.5CL
7/32	-	0.2180	11-0218-7/32C	11-0218-7/32CL
15/64	-	0.2340	11-0234-15/64C	11-0234-15/64CL
-	6.0	0.2360	11-0236-6.0C	11-0236-6.0CL
1/4	-	0.2500	11-0250-1/4C	11-0250-1/4CL
-	6.5	0.2560	11-0256-6.5C	11-0256-6.5CL
17/64	-	0.2650	11-0265-17/64C	11-0265-17/64CL
-	7.0	0.2750	11-0275-7.0C	11-0275-7.0CL
