DV / DN Power Chuck
- Suitable for vertical milling and drilling operations.
- With large through-hole, Vertical / horizontal power chucks does not only clamp the long workpiece but also the horizontal holding.
| Piston Dia. (mm) |
Piston Area (cm²) |
Max. Draw Bar Force (kgf) |
Piston Stroke (mm) |
Max. Operating Pressure (kgf / cm²) |
Weight (kg) |
Matching Chuck |
SPEC Part Number | Price Each | ||
| Push Side | Pull Side | Push Side | Pull Side | |||||||
| Ø115 | 104 | 78.5 | 1900 | 1400 | 20 | 20 | 12 | V-206 | DV-6 | Call or Email |
| Ø155 | 187 | 148.6 | 3600 | 2800 | 21 | 20 | 21 | V-208, V-210, V-212 | DV-8 | Call or Email |
| Ø155 | 148.6 | 148.6 | 2800 | 2800 | 17 | 20 | 28.5 | N-208 | DN-8 | Call or Email |

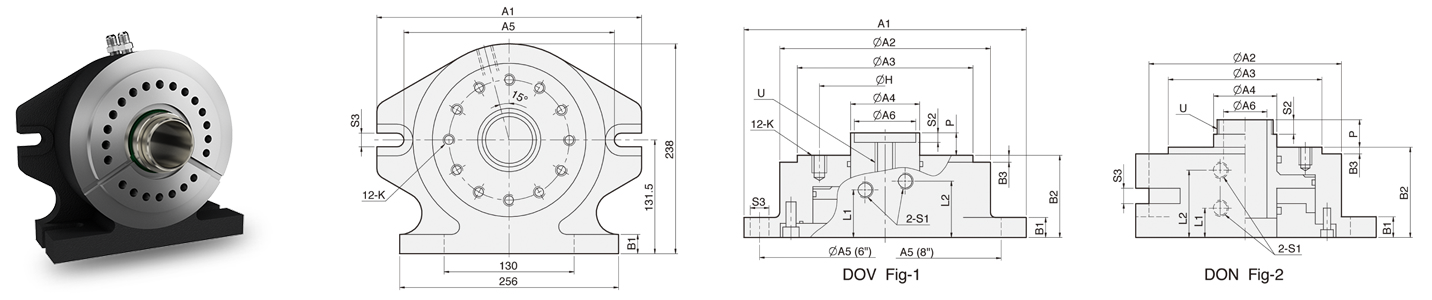

| A1 | A2 | A3 | A4 | A5 | A6 | B1 | B2 | B3 | H | K | L1 | L2 | P max. |
P min. |
S1 | S2 | S3 | U | Reference | DIM Part Number | Price Each |
| Ø220 | 168 | 140 | 55 | Ø200 | 49 | 16 | 65.5 | 5.5 | 104.78 | 12-M10x15L | 38 | 45 | 18 | -2 | PT 1/4" | 7.6 | 2-Ø15 | M16xP2.0 | Fig-1 | DV-6 | Call or Email |
| 290 | 210 | 170 | 70 | 242 | 58 | 24 | 86 | 5.5 | 133.35 | 12-M12x16L | 23 | 65 | 20 | -1 | PT 1/4" | 5.5 | 2-16 | M16xP2.0 | Fig-1 | DV-8 | Call or Email |
| 293 | 213 | 170 | 70 | 242 | 52 | 24 | 100 | 5.5 | 133.35 | 12-M12x18L | 32.5 | 74.5 | 30.4 | 13.4 | PT 1/4" | 16 | 4-17 | M60xP2.0 | Fig-2 | DN-8 | Call or Email |
