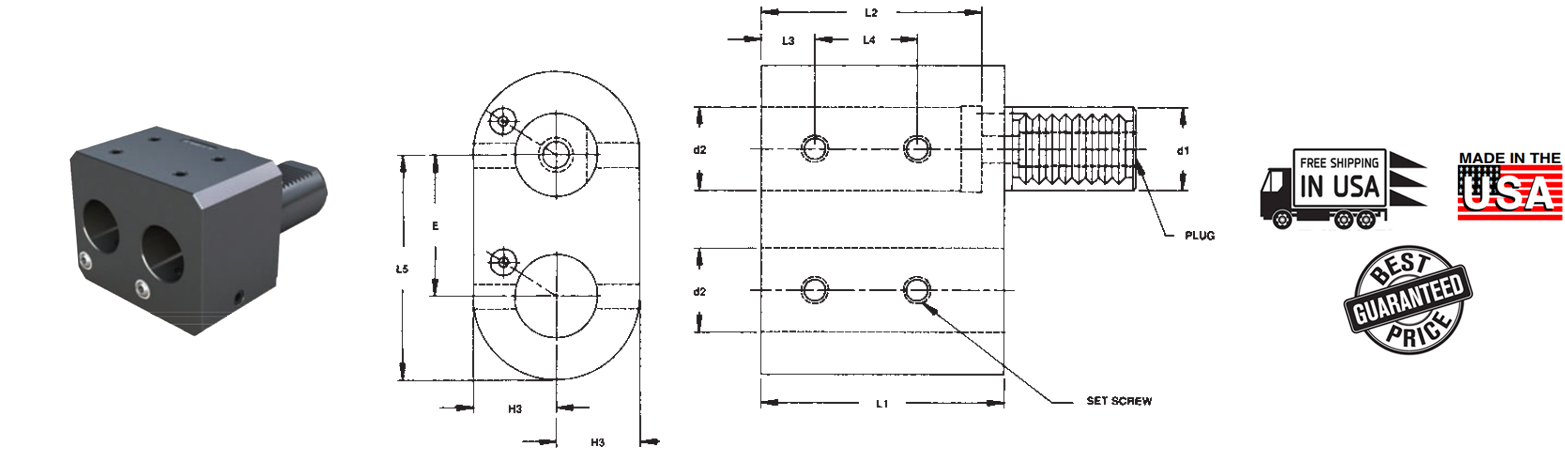

Double Offset Boring Bar Holder

Double Offset Boring Bar Holder
Right-Hand or
Left-Hand

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.
RIGHT-HAND (ABOVE)

d1	d2 in	d2 mm	E	H3	L1	L2	L3	L4	L5	Set Screw	Plug	Part Number
20	3/4	20	32	25	45	43	10	20	50	1/4-20	3/8-24	CNC86 91.2020
30	1	25	45	34	56	50	14	24	65	1/4-20	5/8-18	CNC86 91.3025
40	1-1/4	32	50	42	66	63	15	30	75	3/4-16	5/8-18	CNC86 91.4032
50	1-1/2	40	65	49	80	75	18	38	95	1/2-13	5/8-18	CNC86 91.5040
60	2	50	80	62	90	85	20	46	120	1/2-13	5/8-18	CNC86 91.6050

Prices are pulled from our database in real time. Press Add button to see product price.
LEFT-HAND (OPPOSITE TOOLING)

d1	d2 in	d2 mm	E	H3	L1	L2	L3	L4	L5	Set Screw	Plug	Part Number
20	3/4	20	32	25	45	43	10	20	50	1/4-20	3/8-24	CNC86 92.2020
30	1	25	45	34	56	50	14	24	65	1/4-20	5/8-18	CNC86 92.3025
40	1-1/4	32	50	42	66	63	15	30	75	3/8-16	5/8-18	CNC86 92.4032
50	1-1/2	40	65	49	80	75	18	38	95	1/2-13	5/8-18	CNC86 92.5040
60	2	50	80	62	90	85	20	46	120	1/2-13	5/8-18	CNC86 92.6050
