Daewoo / Doosan Tool Blocks

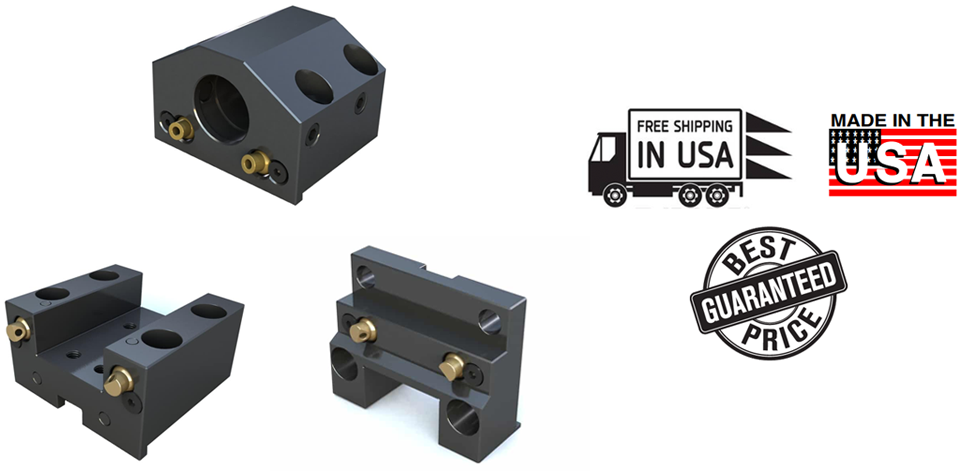

Tool Block Features
- Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
- Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
- Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
- Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
- Components Included: Wedges, Coolant Nozzles and Set Screws.
- Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
- Made in the USA.
- VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
- ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
- Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
- More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
| Bolt Hole Pattern: 58mm x 58mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Doosan BMT45, Turret, Lynx 220 | 1" | 65mm | BMT45-8425 | BMT45-8311A .75" Sq. | BMT45-8411A .75" Sq. | CALL |
| 1.25" | 65mm | BMT45-8432 | CALL |
| Bolt Hole Pattern: 64mm x 64mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Doosan BMT55, Doosan TT18SY, Doosan TT1800Sy, Puma 2000 | 1.25" | 70mm | BMT55-8432 | BMT55-8311 1" Sq. | BMT55-8411 1" Sq. | CALL |
| 1.5" | 70mm | BMT55-8435 | BMT55-8311 DBL 1" Sq. | CALL | ||
| 2" | 70mm | BMT55-8436 | CALL |
| Bolt Hole Pattern: 73mm x 70mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Doosan BMT65, Puma 3100, Doosan 2600ms, Doosan TT2500SY, Puma V400, Puma V300M Puma400MB, Puma 300LM | 1.5" | 100mm | BMT65-8435 | BMT65-8311 1" Sq. | BMT65-8411 1" Sq. | CALL |
| 2" | 100mm | BMT65-8436 | BMT65-8311 DBL 1" Sq. | CALL |
| Bolt Hole Pattern: 90mm x 90mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Doosan BMT75, Puma V550, Puma 400 | 2" | 60mm | BMT75-8436 | BMT75-8311 1" Sq. | BMT75-8411 1" Sq. | CALL |
| 2.5" | 60mm | BMT75-8437 | BMT75-8311 1.25" Sq. | BMT75-8411 1.25" Sq. | CALL | |
| 3" | 60mm | BMT75-8475 | CALL |
| Bolt Hole Pattern: 72mm x 45mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Puma 200, Puma 240C, With Locator Keyway | 1.5" | 40mm | Puma200K-8435 | Puma200K-8311 1" Sq. | Puma200K-8411 1" Sq. | CALL |
| 2" | 40mm | Puma200K-8436 | CALL |
| Bolt Hole Pattern: 72mm x 45mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Puma 200, Puma 240C, With Locator Slot | 1.5" | 40mm | Puma200S-8435 | Puma200S-8311 1" Sq. | Puma200S-8411 1" Sq. | CALL |
| 2" | 40mm | Puma200S-8435 | CALL |
| Bolt Hole Pattern: 80mm x 55mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Puma 300, Puma 250L, Puma 300L, Daewoo 12, With Locator Slot | 1.5" | 40mm | Puma300S-8435 | Puma300S-8311 1" Sq. | Puma300S-8411 1" Sq. | CALL |
| 2" | 40mm | Puma300S-8436 | CALL |
| Bolt Hole Pattern: 80mm x 55mm Machine Model |
I.D. | Center Height |
Part Number Int. Coolant: Add -INT |
OD Turning Type I |
OD Facing Type II |
Price |
| Puma 300, Puma 250L , Puma 300L , Daewoo 12, With Locator Keyway | 1.5" | 40mm | Puma300K-8435 | Puma300K-8311 1" Sq. | Puma300K-8411 1" Sq. | CALL |
| 2" | 40mm | Puma300K-8436 | CALL |
