CR Collet Chuck
- Collet chucks with bayonet catch are mainly used for hucking bar work on NC / CNC lathes.
- The bar can be fed in through the chuck.
- Profiles can also be chucked with the appropriate collets.
| Matching Adapter |
Bar Capacity (mm) |
Sleeve stroke (mm) (mm) |
Max. Push Force kN(kgf) |
Max. Gripping Force kN(kgf) |
Max. Speed (r.p.m.) |
Weight (kg) |
SPEC Part Number | Price Each |
| 140 | 42 | 7 | 25(2549) | 55(5608) | 6000 | 6.2 | CR42-140 | Call or Email |
| 170 | 60 | 7 | 30(3059) | 65(6628) | 5000 | 11.5 | CR60-170 | Call or Email |
| 220 | 60 | 7 | 30(3059) | 65(6628) | 5000 | 15.5 | CR60-220 | Call or Email |

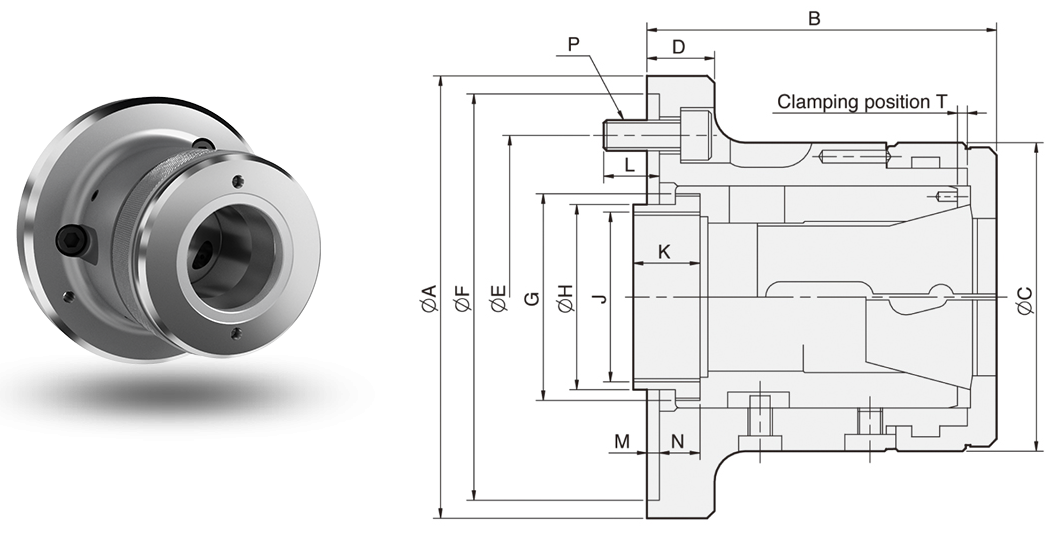

| A (h6) |
B | C | D | E | F (H6) |
G | H | J | K | L | M | N | P | T | DIM Part Number | Price Each |
| 155 | 114 | 100 | 23 | 104.78 | 140 | M66xP1.5 | 60 | M55xP2.0 | 25 | 18 | 6 | 11.9 | 3-M10 | 3.1 | CR42-140 | Call or Email |
| 185 | 139 | 130 | 30 | 133.35 | 170 | M90xP1.5 | 80 | M74xP2.0 | 30 | 18 | 6 | 17.9 | 6-M12 | 3.1 | CR60-170 | Call or Email |
| 235 | 141 | 130 | 32 | 171.45 | 220 | M90xP1.5 | 80 | M74xP2.0 | 30 | 20 | 6 | 19.9 | 6-M16 | 3.1 | CR60-220 | Call or Email |

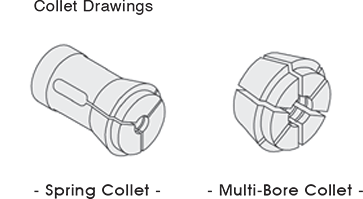

| Capacities Chuck | MULTIBORE | SPRING COLLET | ||||||
| NO. | Cat.No. |  |
 |
 |
Cat.No. | |
|
|
| CR42 | M-673 | 42 | 36 | 30 | 173E/4728 | 42 | 36 | 30 |
| CR60 | M-677 | 60 | 52 | 42 | 185E/4291 | 60 | 52 | 42 |
