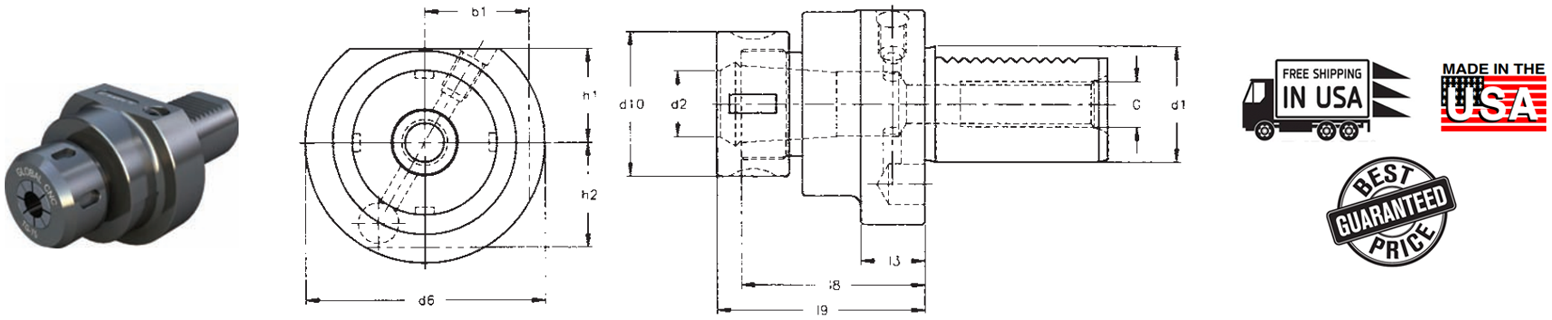

Collet Chuck – Form E3 (TG75 and TG100 Style)
TG75 and TG100 Style Inch sizes can be ordered online. For mm size please call to order.
| d1 | d2 inch | d6 | d10 | b1 | L3 | L8 | L9 | h1 | h2 | G | Collet Type | Part Number | Price |
| 30 | 3/64 - 3/4 | 68 | 50 | 30 | 22 | 63 | 77.4 | 28 | 30 | 5/8 - 18 | 75TG | CNC86 53.3075TG | CALL |
| 30 | 3/32 - 1 | 68 | 60 | 30 | 22 | 63 | 82.1 | 28 | 30 | 5/8 - 18 | 100TG | CNC86 53.30100TG | CALL |
| 40 | 3/64 - 3/4 | 83 | 50 | 22 | 63 | 77.4 | 32.5 | 5/8 - 18 | 75TG | CNC86 53.4075TG | CALL | ||
| 40 | 3/32 - 1 | 83 | 60 | 22 | 63 | 82.1 | 32.5 | 5/8 - 18 | 100TG | CNC86 53.40100TG | CALL | ||
| 50 | 3/64 - 3/4 | 98 | 50 | 30 | 71 | 77.4 | 35 | 5/8 - 18 | 75TG | CNC86 53.5075TG | CALL | ||
| 50 | 3/32 - 1 | 98 | 60 | 30 | 71 | 82.1 | 35 | 5/8 - 18 | 100TG | CNC86 53.50100TG | CALL | ||
| 60 | 3/64 - 3/4 | 123 | 50 | 30 | 71 | 77.4 | 42.5 | 5/8 - 18 | 75TG | CNC86 53.6075TG | CALL | ||
| 60 | 3/32 - 1 | 123 | 60 | 30 | 71 | 82.1 | 42.5 | 5/8 - 18 | 100TG | CNC86 53.60100TG | CALL | ||
| 80 | 3/64 - 3/4 | 158 | 50 | 40 | 63 | 77.4 | 55 | 5/8 - 18 | 75TG | CNC86 53.8075TG | CALL | ||
| 80 | 3/32 - 1 | 158 | 60 | 40 | 63 | 82.1 | 55 | 5/8 - 18 | 100TG | CNC86 53.80100TG | CALL |
