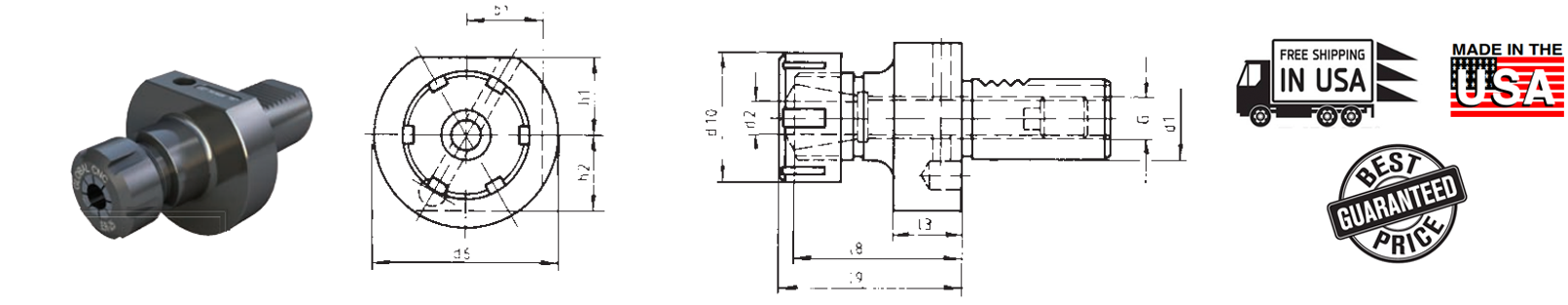

Collet Chuck – Form E3 (ER & RDO Style)

Collet Chuck – Form E3
ER & RDO Style

Inch sizes can be ordered online. For mm size please call to order.

d1	d2 in	d2 mm	d6	d10	b1	L3	L8	L9	h1	h2	G	Collet Type	Part Number	Price
16	1/32 - 3/8	1/2 - 10	40	28		13	30	40	18	18	5/16 - 24	ER16	CNC86 53.1616	CALL
16	1/32 - 9/16	1 - 12	40	34		13	33	45	18	18	5/16 - 24	ER20	CNC86 53.1620	CALL
20	1/32 - 3/8	1/2 - 10	50	28		18	30	40	23	23	3/8 - 24	ER16	CNC86 53.2016	CALL
20	1/32 - 5/8	1 - 16	50	42		18	38	50	23	23	3/8 - 24	ER25	CNC86 53.2025	CALL
20	1/16 - 3/4	2 - 20	50	50		18	48	60	23	23	3/8 - 24	ER32	CNC86 53.2032	CALL
20	3/32 - 1-1/32	3 - 25	50	63		18	52	66	23	23	3/8 - 24	ER40	CNC86 53.2040	CALL
25	1/32 - 5/8	1 - 16	58	42		18	38	50	25	25	3/8 - 24	ER25	CNC86 53.2525	CALL
25	1/16 - 3/4	2 - 20	58	50		18	48	60	25	25	3/8 - 24	ER32	CNC86 53.2532	CALL
30	1/32 - 5/8	1 - 16	68	42	30	22	63	75	28	30	5/8 - 18	ER25	CNC86 53.3025	CALL
30	1/16 - 3/4	2 - 20	68	50	30	22	63	75	28	30	5/8 - 18	ER32	CNC86 53.3032	CALL
30	3/32 - 1-1/32	3 - 25	68	63	30	22	61	75	28	30	5/8 - 18	ER40	CNC86 53.3040	CALL
40	1/32 - 5/8	1 - 16	83	42		22	63	75	32.5		5/8 - 18	ER25	CNC86 53.4025	CALL
40	1/16 - 3/4	2 - 20	83	50		22	63	75	32.5		5/8 - 18	ER32	CNC86 53.4032	CALL
40	3/32 - 1-1/32	3 - 25	83	63		22	61	75	32.5		5/8 - 18	ER40	CNC86 53.4040	CALL
50	3/32 - 1-1/32	3 - 25	98	63		30	61	75	35		5/8 - 18	ER40	CNC86 53.5040	CALL
60	3/32 - 1-1/32	3 - 25	123	63		30	61	75	42.5		5/8 - 18	ER40	CNC86 53.6040	CALL
20	1/16 - 5/8	1-1/2 - 16	50	43		18	43	57	23	23	5/8 - 18	EX25	CNC86 53.20415	CALL
25	1/16 - 5/8	1-1/2 - 16	58	43		18	48	62	25	25	5/8 - 18	EX25	CNC86 53.25415	CALL
30	1/16 - 5/8	1-1/2 - 16	68	43	30	22	47	57	28	30	5/8 - 18	EX25	CNC86 53.30415	CALL
30	1/16 - 1	1-1/2 - 25	68	60		22	59	75	28	30	5/8 - 18	EX32	CNC86 53.30462	CALL
40	1/16 - 5/8	1-1/2 - 16	83	43	30	22	43	57	32.5		5/8 - 18	EX25	CNC86 53.40415	CALL
40	1/16 - 1	1-1/2 - 25	83	60	30	22	59	75	32.5		5/8 - 18	EX32	CNC86 53.40462	CALL
40	1/8 - 1-1/4	3-1/2 - 32	83	72		30	78	90	32.5		5/8 - 18	EX40	CNC86 53.40467	CALL
50	1/16 - 1	1-1/2 - 25	98	60		30	59	75	35		5/8 - 18	EX32	CNC86 53.50462	CALL
50	1/8 - 1-1/4	3-1/2 - 32	98	72		30	78	90	35		5/8 - 18	EX40	CNC86 53.50467	CALL
60	1/8 - 1-1/4	3-1/2 - 32	123	72		30	78	90	42.5		5/8 - 18	EX40	CNC86 53.60467	CALL
