CM.B Hydraulic Cylinder

Hydraulic cylinder coolant collector

Hydraulic cylinders coolant collectors. Compact and light weight, they feature bore sizes up to 20% large than Conventional Cylinders. Precision finished piston bores and cool running rotary unions are included for years of trouble-free performance.
The proximity switches are extra option.

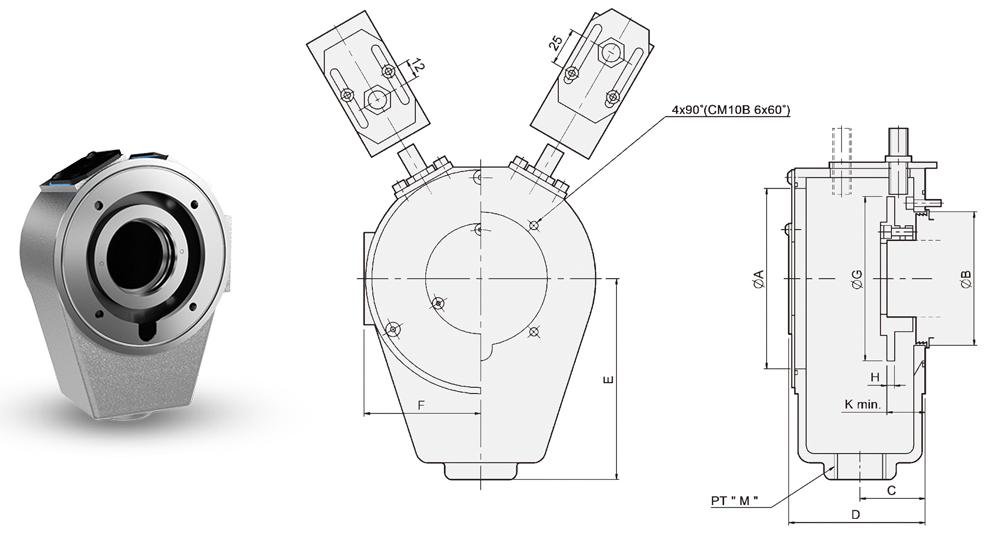

A	B	C	D	E	F	G	J	L max.	L min.	N	P	S	T	M	H1	K1	Q1	Reference	Matching Cylinder	Weight (kg)	DIM Part Number	Price Each
82.5	30	35	71.5	106	55.5	77	5	47.5	17.5	30	67	90	105	PT 3/4"	76	44	4-M4	Fig2	M0928	0.85	CM09B	Call or Email
82.5	40	35	71.5	106	55.5	107	5	47.5	17.5	30	75	---	105	PT 3/4"	88	44	6-M5	Fig1	M1036	1.0	CM10B1	Call or Email
117.5	48	42	85.5	142	74	107	5	60.5	17.5	30	87	---	130	PT 1"	98	47	4-M5	Fig1	M1236, M1246, MK1246, MM1246A	1.6	CM12B	Call or Email
117.5	55	42	85.5	142	74	107	5	60.5	17.5	30	98	---	130	PT 1"	110	47	4-M6	Fig1	M1546, M1552, MK1452	1.6	CM15B8	Call or Email
155	80	42.5	86.5	184	94	147	5	58.5	17.5	30	123	---	150	PT 1"	155	47	4-M6	Fig1	M1868, M1875	2.0	CM18B	Call or Email
155	80	42.5	86.5	184	94	147	5	60.5	19.5	30	126	175	150	PT 1"	166	47	4-M6	Fig2	MK1881	2.0	CM18BK	Call or Email
155	95	42.5	86.5	184	94	147	5	60.5	17.5	30	140	---	150	PT 1"	165	47	4-M6	Fig1	M2091	2.1	CM20B	Call or Email
200	120	44	89.5	230	117	192	12	60	21	27	179	---	180	PT 1"	206	47	4-M6	Fig1	M2511	2.4	CM25B	Call or Email
254	170	52	103	285	147	240	8	74.5	20.5	20	222.6	278	260	PT 1-1/4"	256	85	4-M6	Fig2	ML2816	4.2	CM28B	Call or Email
300	208	52	101.5	330	---	285	8	74.5	20.5	20	262.6	328	259	PT 1-1/4"	308	70	4-M6	Fig2	ML3320	7.2	CM33B	Call or Email
