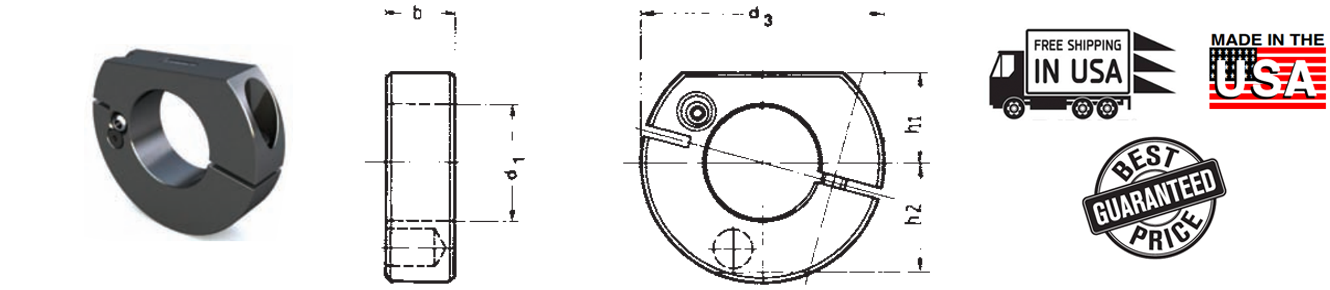

Clamping Ring – Form Z1
Internal Coolant
| d2 | d3 | b | h1 | h2 | Part Number | Price |
| 20mm | 50 | 15 | 23 | 23 | CNC86 63.5020 | CALL |
| 25mm | 58 | 16 | 25 | 25 | CNC86 63.5825 | CALL |
| 32mm | 68 | 20 | 28 | 30 | CNC86 63.6830 | CALL |
| 40mm | 83 | 22 | 32.5 | CNC86 63.8340 | CALL | |
| 50mm | 98 | 30 | 35 | CNC86 63.9850 | CALL | |
| 60mm | 123 | 30 | 42.5 | CNC86 63.12360 | CALL | |
| 80mm | 158 | 40 | 55 | CNC86 63.15880 | CALL |
| d2 | d3 | b | h1 | h2 | Part Number | Price |
| 3/4" | 50 | 15 | 23 | 23 | CNC86 63.5020 3/4" | CALL |
| 1" | 58 | 16 | 25 | 25 | CNC86 63.5825 1" | CALL |
| 1-1/4" | 68 | 20 | 28 | 30 | CNC86 63.6830 1-1/4" | CALL |
| 1-1/2" | 83 | 22 | 32.5 | CNC86 63.8340 1-1/2" | CALL | |
| 2" | 98 | 30 | 35 | CNC86 63.9850 2" | CALL | |
| 2-1/4" | 123 | 30 | 42.5 | CNC86 63.12360 2-1/4" | CALL | |
| 3" | 158 | 40 | 55 | CNC86 63.15880 3" | CALL |
