NIT-200 Series Chucks - 4 Jaw
1.5mm x 60° Serrations Power Chucks
| Chuck Size | Chuck Model | Chuck Dia. | Thru-hole Dia. | Mount | Part Number | Price Each |
| 6” | NIT206 | 6.653” | 1.772” | A2-5 | K-F206A5-NIT-B | $2,240.00 |
| 8” | NIT208 | 8.268” | 2.047” | A2-5 | K-F208A05-NIT-B | $2,978.63 |
| A2-6 | K-F208A06-NIT-B | |||||
| 10” | NIT210 | 10.000” | 2.953” | A2-6 | K-F210A06-NIT-B | $3,387.25 |
| A2-8 | K-F210A08-NIT-B | |||||
| 12” | NIT212 | 11.969” | 3.585” | A2-6 | K-F212A06-NIT-B | $4,136.28 |
| A2-8 | K-F212A08-NIT-B |
| Model | Thru-hole (mm) | Plunger Stroke (mm) | Jaw Stroke (mm) | Max. Draw Bar Pull (kgf) | Max Gripping Force (kgf) | Max. Operating Pressure (kgf/cm) | Max Speed (RPM) | Matching Cylinder |
| NIT-206 NIT-208 NIT-210 NIT-212 |
45 52 75 91 |
12 16 19 23 |
5.5 7.4 8.8 10.6 |
2243 3558 4385 5812 |
5812 9075 11319 14990 |
28.5 26.5 27.5 27.5 |
4500 3600 3200 2700 |
M1246 M1552 M1875 M2091 |

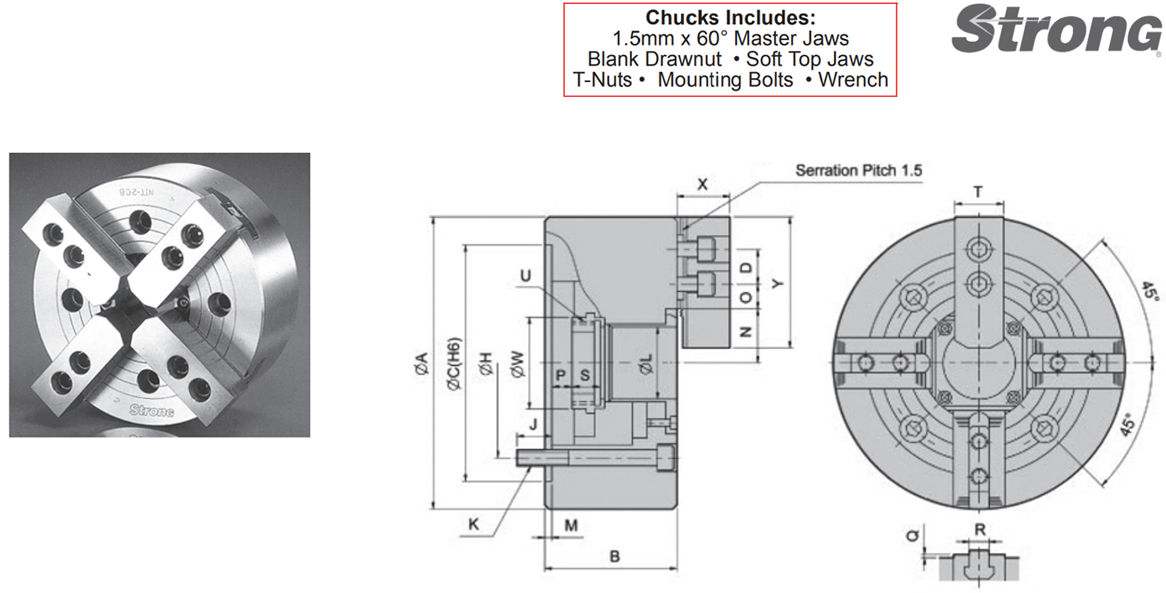

| Model | A | B | C (H6) | D | H | J | K | L | M | N max. | O max. | O min. | P max. | P min. | Q | R | S | T | U max. | W | X | Y |
| NIT-206 | 169 | 81 | 140 | 20 | 104.78 | 16 | 4-M10x80 | 45 | 5 | 32 | 22.75 | 9.25 | 11 | -1 | 2 | 12 | 19 | 31 | M55X2 | 60 | 37 | 73 |
| NIT-208 | 210 | 91 | 170 | 25 | 133.35 | 20 | 4-M12x90 | 52 | 5 | 38.7 | 29.75 | 14.75 | 14.5 | -1 | 2 | 14 | 20.5 | 35 | M60X2 | 66 | 38 | 95 |
| NIT-210 | 254 | 100 | 220 | 30 | 171.45 | 22 | 4-M16x100 | 75 | 6 | 51 | 33.75 | 14.25 | 8.5 | -10.5 | 2 | 16 | 25 | 40 | M85X2 | 94 | 43 | 110 |
| NIT-212 | 304 | 110 | 220 | 30 | 171.45 | 23 | 4-M16x110 | 91 | 6 | 61.3 | 45.75 | 15.75 | 8 | -15 | 2 | 21 | 28 | 50 | M100X2 | 108 | 51 | 130 |
| NIT-215 | 381 | 133 | 300 | 43 | 235 | 35 | 4-M20x135 | 117.5 | 6 | 82 | 45.25 | 16.75 | 7 | -16 | 5 | 22 | 43 | 62 | M130X2 | 139 | 66 | 165 |
