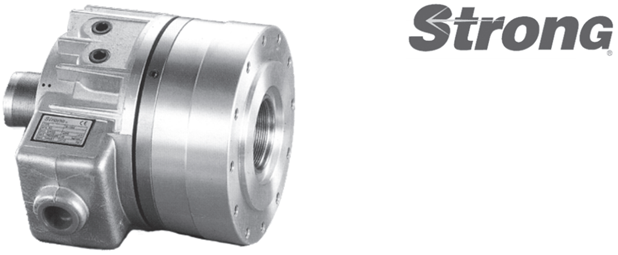

Rotary Hydraulic Cylinders
Super High Speed Through Hole
Strong large thru-hole, high speed rotary hydraulic cylinders are for use with all thru-hole power chucks with speeds up to 7000RPM. All cylinders come with hydraulic pressure lock system and a built-in check valve.
| Piston Area | Draw Bar Pull Force | ||||||||||||
| MODEL | Piston Dia | Push Size | Pull Side | Piston Stroke | Push Side | Pull Side | Max Op. Pressure | Max RPM | Moment Inertia | Weight | Total Leakage | Part Number | Price |
| M1036 | 105 | 71 | 68.5 | 15 | 24.8(2529) | 24(2447) | 40.8 | 8000 | 0.011 | 8.6 | 3.0 | K-CYM1036-B | $1,840.00 |
| M1236 | 125 | 100 | 89 | 15 | 38(3875) | 33(3365) | 40.8 | 7000 | 0.019 | 13.0 | 3.0 | K-CYM1236-B | $1,870.00 |
| M1246 | 125 | 100 | 89 | 15 | 38(3875) | 33(3365) | 40.8 | 7000 | 0.019 | 12.0 | 3.0 | K-CYM1246-B | $1,870.00 |
| M1546 | 155 | 161 | 150 | 22 | 60(6118) | 56(5710) | 40.8 | 6200 | 0.052 | 18.0 | 3.9 | K-CYM1546-B | $2,465.00 |
| M1552 | 155 | 161 | 150 | 22 | 60(6118) | 56(5710) | 40.8 | 6200 | 0.052 | 16.8 | 3.9 | K-CYM1552-B | $2,465.00 |
| M1868 | 180 | 198 | 183 | 25 | 75(7546) | 69(7036) | 40.8 | 4700 | 0.095 | 28.0 | 4.2 | K-CYM1868-B | $3,060.00 |
| M1875 | 180 | 198 | 183 | 25 | 75(7546) | 69(7036) | 40.8 | 4700 | 0.095 | 26.0 | 4.2 | K-CYM1875-B | $3,060.00 |
| M2091 | 205 | 252 | 234 | 30 | 94(9585) | 94(9585) | 40.8 | 3800 | 0.15 | 37.0 | 4.5 | K-CYM2091-B | $3,825.00 |
| M2511 | 250 | 348 | 336 | 23 | 124(12644) | 120(12236) | 40.8 | 2800 | 0.45 | 57.0 | 7.0 | K-CYM2511-B | $6,120.00 |
