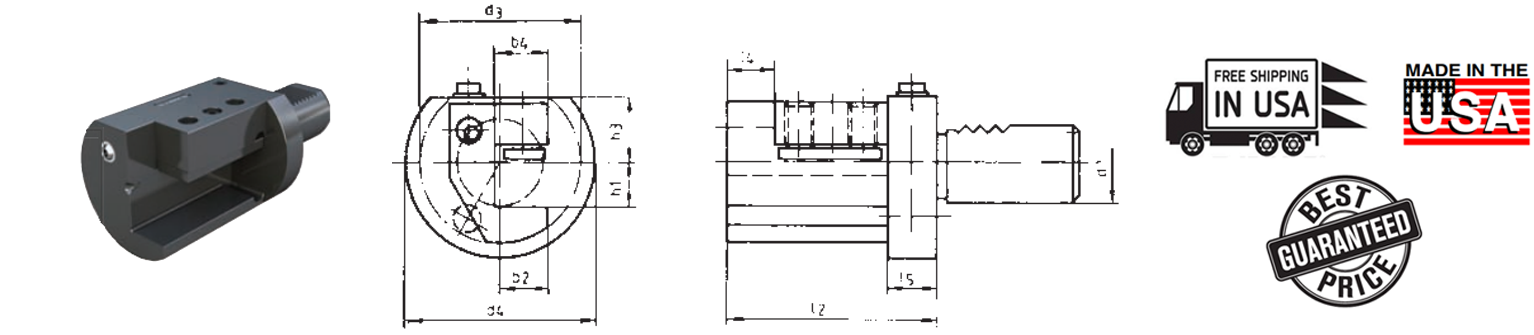

Axial Toolholder
Right-Hand or Left-Hand Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.
| d1 | h1 in | h1 mm | h3 | b2 | b4 | L2 | L4 | L5 | Part Number |
| 30 | 5/8 | 16 | 28 | 16 | 16 | 70 | 16 | 14 | CNC86 35.3016R |
| 30 | 5/8 | 16 | 28 | 16 | 16 | 70 | 16 | 14 | CNC86 35.3016L |
| 40 | 3/4 | 20 | 32.5 | 20 | 20 | 100 | 20 | 16 | CNC86 35.4020R |
| 40 | 3/4 | 20 | 32.5 | 20 | 20 | 100 | 20 | 16 | CNC86 35.4020L |
| 50 | 1 | 25 | 35 | 25 | 25 | 120 | 25 | 28 | CNC86 35.5025R |
| 50 | 1 | 25 | 35 | 25 | 25 | 120 | 25 | 28 | CNC86 35.5025L |
| 60 | 1-1/4 | 32 | 42.5 | 20 | 32 | 120 | 15 | 28 | CNC86 35.6032R |
| 60 | 1-1/4 | 32 | 42.5 | 20 | 32 | 120 | 15 | 28 | CNC86 35.6032L |
