5C Collet Holder Bushing
This brand new 5C Collet Holder Bushing is used to adapt all kinds of Drills, Reamers, Counter Bores and End Mills to your CNC machines. Adds flexibility, versatility and reduces set-up time. Includes back locking nut and screw to hold your 5C Collet in place. Prices are pulled from our database in real time. Press Add button to see product price.

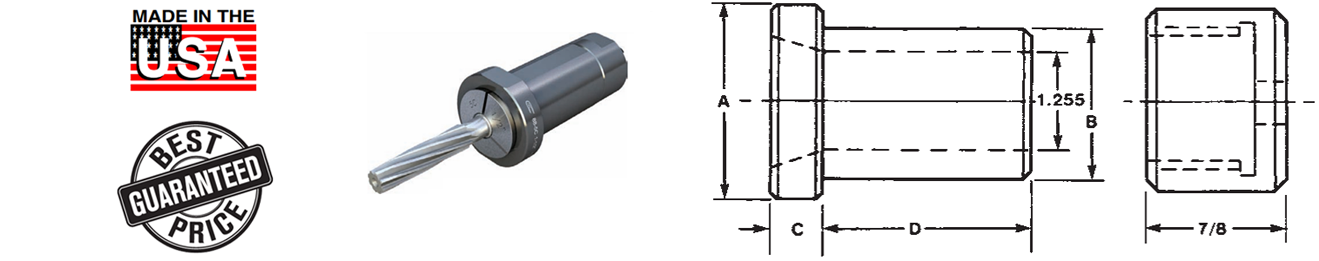

| A | C | D | OD Nut Size | B | Part Number |
| 2" | 1/2" | 2-1/4" | 1-31/64" | 1-1/2" | CNC 885C 1-1/2" |
| 2-1/4" | 1/2" | 2-1/4" | 1-11/15" | 1-3/4" | CNC 885C 1-3/4" |
| 2-1/2" | 1/2" | 2-1/4" | 1-15/16" | 2" | CNC 885C 2" |
| 3" | 1/2" | 2-1/4" | 2-7/16" | 2-1/2" | CNC 885C 2-1/2" |
Prices are pulled from our database in real time. Press Add button to see product price.
| A | C | D | OD Nut Size | B | Part Number |
| 2" | 1/2" | 2-1/4" | 1-31/64" | 40mm | CNC 885C 40mm |
| 2-1/4" | 1/2" | 2-1/4" | 1-11/15" | 45mm | CNC 885C 45mm |
| 2-1/2" | 1/2" | 2-1/4" | 1-15/16" | 50mm | CNC 885C 50mm |
| 3" | 1/2" | 2-1/4" | 2-7/16" | 65mm | CNC 885C 65mm |
