SOFT JAWS FLAT - 1/16" x 90° Serrations

FOR USE ON: SMW Autoblok, Rohm, Pratt Burnerd & Other Chucks
  • 1/16" x 90° serrations
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum & Steel
Prices are pulled from our database in real time. Press Add button to see product price.

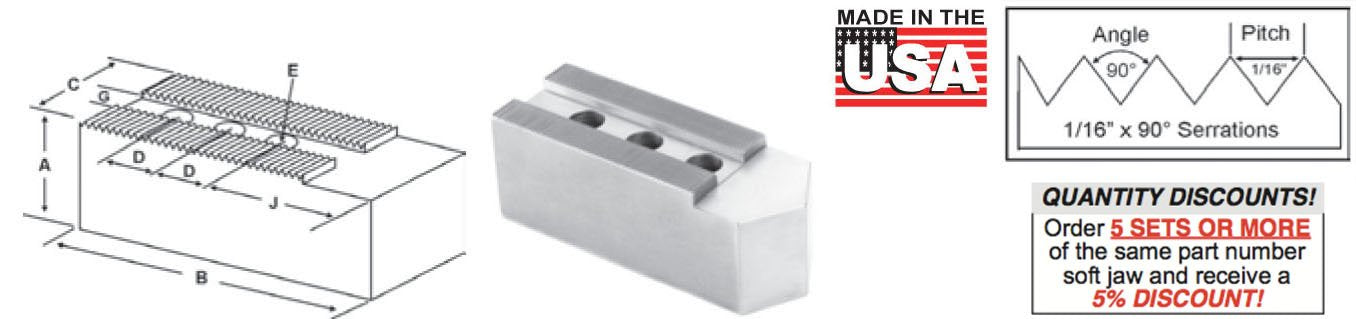

Critical Dimensions ALUMINUM STEEL
Group
No		 Chuck
Size		 Groove Width
G		 Screw Size
E		 Hole Space
D		 Height Inch
A		 Hole to Front
J		 Width Inch
C		 Length Inch
B		 No.
of
Holes		 FLAT END
Part Number		 FLAT END
Part Number
I1-43-62 5 0.433 (11mm) 5/16 0.625 (16mm) 1.50 0.875 1.00 2.500 3 PH-5156AF
PH-5156F
2.00 0.875 1.00 2.500 3 PH-5256AF
PH-5256F
I1-43-71 5 - 6 0.433 (11mm) 5/16 0.718 (18mm) 1.50 1.250 1.25 3.125 3 PH-6150AF
PH-6150F
SP 125,
STP 125,
STWP 125		 2.00 1.250 1.25 3.125 3 PH-6200AF
PH-6200F
2.50 1.250 1.25 3.125 3 PH-6250AF
PH-6250F
3.00 1.250 1.25 3.125 3 PH-6300AF
PH-6300F
I1-47-59 5 - 6 0.473 5/16 0.591 1.50 0.900 1.00 2.500 3 PH-5150AF
PH-5150F
I1-47-63 5 - 6 0.472 8mm 0.630 1.00 0.900 1.00 2.500 3 PH-5100AF
PH-5100F
2.00 0.900 1.25 2.500 3 PH-5200AF
PH-5200F
I1-55-71 5 - 6 0.551 (14mm) 3/8 0.710 (18mm) 1.50 1.150 1.25 3.000 3 PH-6155AF
PH-6155F
3.00 1.150 1.25 3.000 3 PH-6305AF
PH-6305F
I1-55-78 5-6 0.551 (14mm) 3/8 0.787 2.00 1.625 1.25 3.000 3 HA-6200AF
HA-6200F
3.00 1.625 1.25 3.000 3 HA-6300AF
HA-6300F
4.00 1.625 1.25 3.000 3 HA-6400AF
HA-6400F
I1-55-87 5 - 10 0.551 (14mm) 3/8 0.875 (22mm) 1.50 2.125 1.50 4.375 3 PH-6151AF
PH-6151F
2.00 2.125 1.50 4.375 3 PH-6201AF
PH-6201F
2.00 2.325 1.75 4.750 3 PH-10205AF
PH-10205F
2.50 2.125 1.50 4.375 3 PH-6251AF
PH-6251F
3.00 2.125 1.50 4.375 3 PH-6301AF
PH-6301F
3.00 3.575 2.00 6.000 3 PH-10306AF
PH-10306F
4.00 2.125 1.50 4.375 3 PH-6401AF
PH-6401F
4.00 2.325 1.75 4.750 3 PH-10405AF
PH-10405F
4.00 3.575 2.00 6.000 3 PH-10406AF
PH-10406F
I1-55-98 5 - 6 0.551 (14mm) 3/8 0.984 (25mm) 1.50 1.650 1.25 3.250 2 SM-6150AF
SM-6150F
3.00 1.650 1.25 3.250 2 SM-6300AF
SM-6300F
I1-59-81 6 0.590 10mm 0.810 2.00 0.750 1.00 2.000 2 PB-6200AF
PB-6200F
I1-66-87 5 - 10 0.669 3/8 0.875 2.00 1.550 1.25 3.250 2 PH-6203AF
PH-6203F
SMW
Autoblok
BB-D 210,
BH-D 210		 8 0.669 (17mm) 1/2 0.875 (22mm) 2.00 2.125 1.50 4.375 3 PH-8200AF
PH-8200F
3.00 2.125 1.50 4.375 3 PH-8300AF
PH-8300F
4.00 2.125 1.50 4.375 3 PH-8400AF
PH-8400F
I1-66-100 8 0.669 (17mm) 1/2 1.000 (25.5mm) 2.00 1.725 1.50 4.375 3 PH-8201AF*
PH-8201F*
PBA
9821-_2110		 3.00 1.725 1.50 4.375 3 PH-8301AF*
PH-8301F*
4.00 1.725 1.50 4.375 3 PH-8401AF*
PH-8401F*
I1-66-112 8 0.669 (17mm) 1/2 1.125 (28.5mm) 2.00 1.750 1.50 3.500 2 SM-8200AF*
SM-8200F*
3.00 1.750 1.50 3.500 2 SM-8300AF*
SM-8300F*
5.00 1.750 1.50 3.500 2 SM-8500AF*
SM-8500F*
I1-71-83 8 0.710 12mm 0.830 2.00 0.840 1.75 3.000 2 PB-6201AF
PB-6201F
I1-78-118 10 - 12 0.787 (20mm) 1/2 1.187 (30mm) 2.50 2.250 1.75 5.250 3 PH-10250AF
PH-10250F
PBA 15 4.00 2.250 1.75 5.250 3 PH-10400AF
PH-10400F
2.50 2.250 2.00 5.500 3 PH-10252AF
PH-10252F
4.00 2.250 2.00 5.500 3 PH-10402AF
PH-10402F
I1-82-102 10-12 0.826 16mm 1.102 2.00 2.460 1.75 4.750 2 PB-12200AF
PB-12200F
I1-82-112 11 - 12 0.827 (21mm) 5/8 1.125 (28.5mm) 3.00 2.440 2.00 4.750 2 PH-11300AF*
PH-11300F*
3.00 2.440 2.00 5.750 2 PH-11307AF*
PH-11307F*
I1-82-117 10 - 12 0.827 (21mm) 1/2 1.187 (30mm) 2.50 2.250 1.75 5.250 3 PH-12250AF
PH-12250F
4.00 2.250 1.75 5.250 3 PH-12400AF
PH-12400F
2.50 2.875 2.00 5.250 2 SM-12250AF
SM-12250F
4.00 2.875 2.00 5.250 2 SM-12400AF
SM-12400F
I1-82-118 8 - 12 0.827 (21mm) 5/8 1.187 (30mm) 2.00 1.963 1.50 3.750 2 PH-8205AF
PH-8205F
SMW
Autoblok
BHD-250/
305/315 		4.00 1.963 1.50 3.750 2 PH-8405AF
PH-8405F
2.50 2.875 2.00 5.250 2 AT-12250AF
AT-12250F
4.00 2.875 2.00 5.250 2 AT-12400AF
AT-12400F
I1-82-125 10 - 13 0.827 (21mm) 5/8 1.250 (32mm) 2.50 2.130 1.75 4.000 2 PB-10250AF*
PB-10250F
2.50 2.630 2.00 4.500 2 PB-12250AF*
PB-12250F
I1-82-156 14 - 18 0.827 (21mm) 5/8 1.562 (39.5mm) 2.50 2.875 2.00 6.750 3 PH-15250AF
PH-15250F
4.00 2.875 2.00 6.750 3 PH-15400AF
PH-15400F
2.50 2.875 2.50 6.750 3 PH-16250AF
PH-16250F
4.00 2.875 2.50 6.750 3 PH-16400AF
PH-16400F
I1-100-137 14 - 15 1.003 (25.5mm) 20mm 1.375 (35mm) 3.50 2.940 2.25 5.500 2 PH-15351AF*
PH-15351F*
3.50 2.940 2.25 6.250 2 PH-153517AF*
PH-153517F*
I1-100-175 16 1.000 (25.5mm) 3/4 1.750 (44.5mm) 3.00 3.500 2.00 6.000 2 PB-16300AF*
PB-16300F*
I1-118-197 18 1.181 (30mm) 20mm 1.970 (50mm) 3.00 3.310 2.50 8.000 3 PH-18300AF*
PH-18300F*
5.00 3.310 2.50 8.000 3 PH-18500AF*
PH-18500F*
