TEE NUTS & SCREWS
Prices are pulled from our database in real time. Press Add button to see product price.

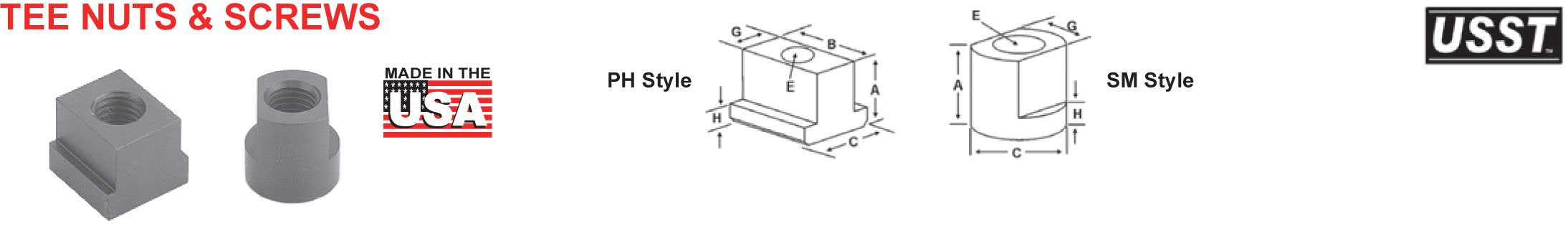

| Critical Dimensions | 1 Free Screw Included With Each Tee Nut | ||||||||||
| Chuck Size |
SMW Autoblok |
Heel Height H |
Groove Width G |
Screw Size E |
Hght Inch A |
Width Inch C |
Length Inch B |
Tee Nut Part Number |
Screw Part Number |
||
| 5 | - | 0.250 | 0.433 | 5/16"-18 x 1.00" | 0.590 | 0.530 | 0.620 | PH-56TN | S5/1618100 | ||
| 5 - 6 | HF-KS 13032 | 0.235 | 0.433 | 5/16"-18 x 1.25" | 0.780 | 0.685 | 0.750 | PH-60TN | S5/1618125 | ||
| 5 - 10 | - | 0.250 | 0.550 | 3/8"-16 x 1.00" | 0.605 | 0.750 | 0.750 | PH-61TN | S3/816100 | ||
| 5 - 6 | - | 0.370 | 0.550 | 3/8"-16 x 1.50" | 1.040 | 0.790 | 0.790 | SM-65TN | S3/816150 | ||
| 8 | - | 0.370 | 0.668 | 1/2"-13 x 1.50" | 1.080 | 1.080 | 0.910 | SM-80TN | S1/213150 | ||
| Critical Dimensions | 1 Free Screw Included With Each Jaw Nut | |||||||||
| Chuck Size |
Heel Height H |
Groove Width G |
Screw Size E |
Hght Inch A |
Width Inch C |
Length Inch B |
Tee Nut Part Number |
Screw Part Number |
||
| 10 - 12 | 0.425 | 0.825 (21mm) | 1/2"-13 x 1.50" | 1.168 | - | 1.100 | SM-120TN | S1/213150 | ||
| 11 - 18 | 0.325 | 0.785 (20mm) | 1/2"-13 x 1.50" | 0.850 | 1.000 | 1.000 | PH-100TN | S1/213150 | ||
| 11 - 18 | 0.430 | 0.827 (21mm) | 5/8"-11 x 1.50" | 1.000 | 1.000 | 1.115 | PH-150TN | S5/811150 | ||
Prices are pulled from our database in real time. Press Add button to see product price.

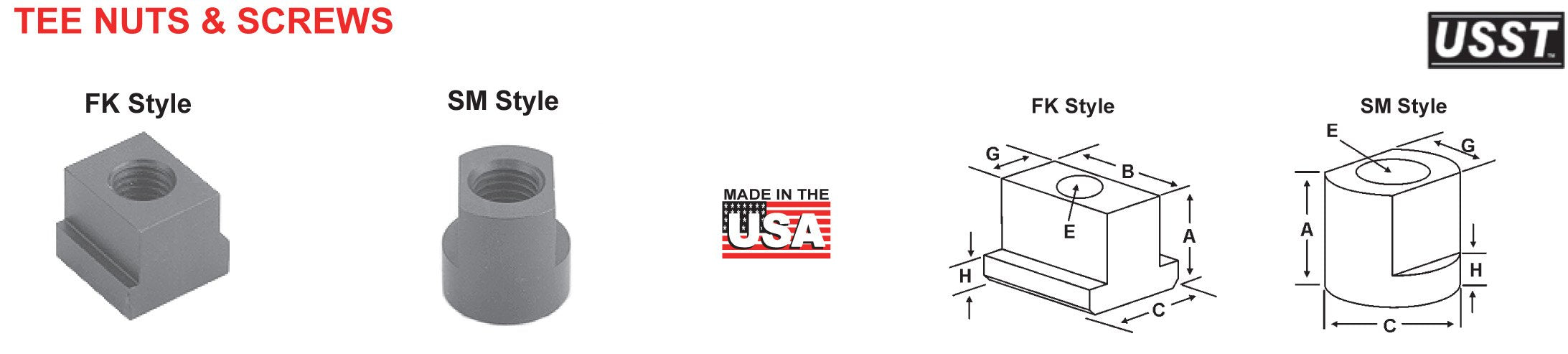

| Critical Dimensions | 1 Free Screw Included With Each Tee Nut | ||||||||||||
| Chuck Size |
Forkardt | Gamet | Pratt Burnerd PBA |
Heel Height H |
Groove Width G |
Screw Size E |
Hght Inch A |
Width Inch C |
Length Inch B |
Tee Nut Part Number |
Screw Part Number |
||
| 16 - 20 | - | - | - | 0.575 | 0.999 (25.5mm) | 3/4"- 10 x 1.75 | 1.150 | 1.370 | 1.370 | SM-160TN | S3/410175 | ||
| 15 - 24 | KP/T 400-500, KS 500 | DE 400 | 400 HYD. FRONT END | 0.433 | 1.003 (25.5mm) | 20mm | 1.141 | 1.417 | 1.082 | FK-160TN | M2025050 | ||
| 25 - 32 | - | - | - | 0.728 | 1.180 (30mm) | 1"- 8 | 1.752 | 1.772 | - | SM-240TN | S1008 | ||
