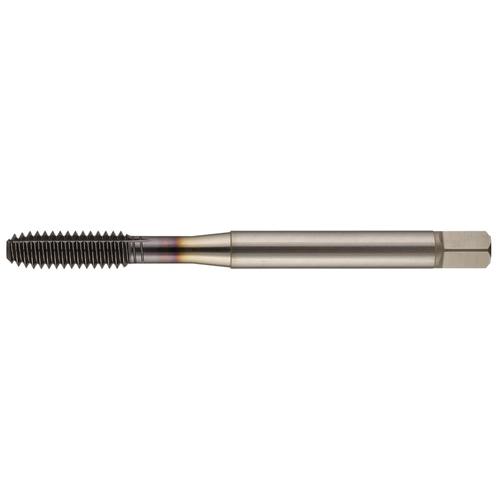

M3X0.5 TICN ZELX HP-RZ D5 BOTT TAP
Item #: YM20386864
Brand: YMW Taps
Model #: 386864
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M3 |
| Application | Blind Hole |
| Thread Pitch (TP) | 0.5 mm |
| Applicable Material | Steel |
| Overall Length (OAL) | 2.205″ |
| Coating | TiCN |
| Usable Length (LU) | 0.709″ |
| Chamfer | 2P |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Cutting Edge Material | HSSPM |
| Thread Tolerance Class (TCTR) | D5 |
| Thread Size | M3 × 0.5 |
