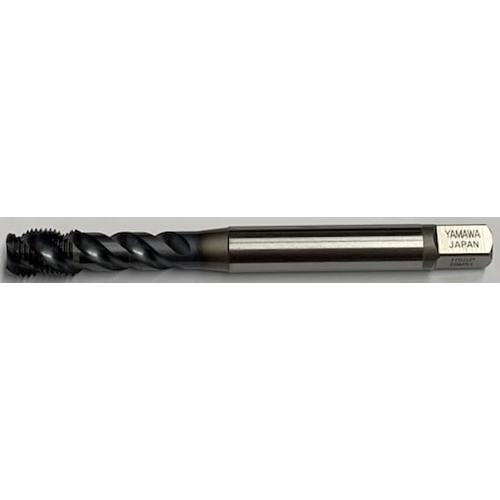

394617-VUSP D5 M 4 × 0.7
Item #: YM13394617
Brand: YMW Taps
Model #: 394617
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Cutting Edge Material | HSSPM |
| Thread Pitch (TP) | 0.7 mm |
| Thread Tolerance Class (TCTR) | D5 |
| Thread Standard | Metric |
| Chamfer | 2.5P |
| Overall Length (OAL) | 2.48″ |
| Coating | TiCN |
| Usable Length (LU) | 0.815″ |
| End Shape | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Other Non-Metallic Materials |
| Coolant Supply Property (CSP) | External |
