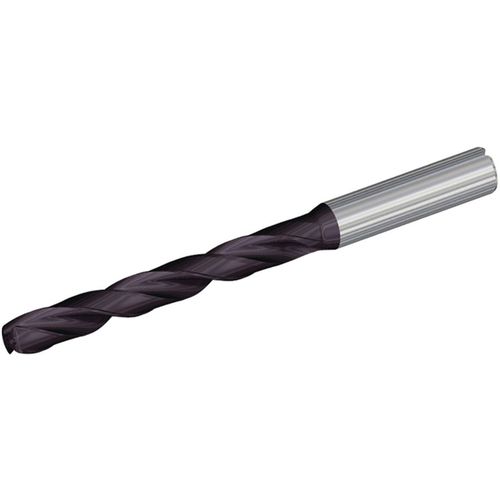

13.1 mm Dia. × 14 mm Shank × 195 mm Flute Length × 246 mm OAL, 132°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK534173524
Brand: Widia
Model #: 4173524
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 13.1 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.5157″ |
| Shape | Center Cut |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.1 mm |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Tool Type | Center Cut |
| Coating | TiAlN |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Grade | WU20PD |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 166 mm |
| Point Angle (SIG) | 132 Degrees |
| Length Chip Flute (LCF) | 195 mm |
| Flute Helix Angle (FHA) | 27.7 Degrees |
| Overall Length (OAL) | 246 mm |
