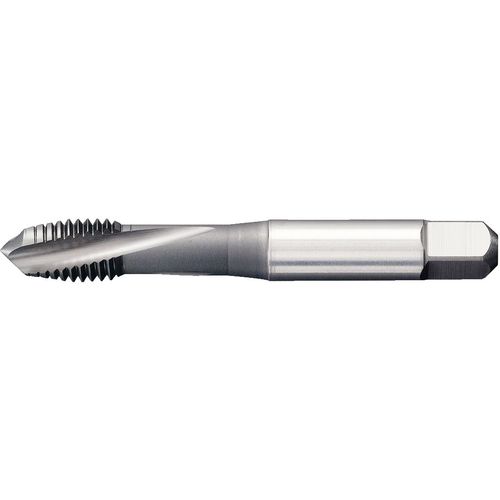

GT205066 M8X1.25 6HX LH SF PLUG
Item #: WK343955015
Brand: Widia
Model #: 3955015
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.25 mm |
| Standard | ANSI |
| Thread Standard | Metric |
| Tool Type | Spiral Flute Tap |
| Overall Length (OAL) | 2.72″ |
| Chamfer | 3P-5P |
| Thread Cutting Part Length (THL) | 0.48″ |
| Flute Type | Spiral |
| Usable Length (LU) | 1.121″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees |
| Square Size | 0.236″ |
| Applicable Material | Stainless Steel |
| Grade | WS34MG |
| Cutting Edge Material | HSS-E PM |
| Series/List # | GT |
