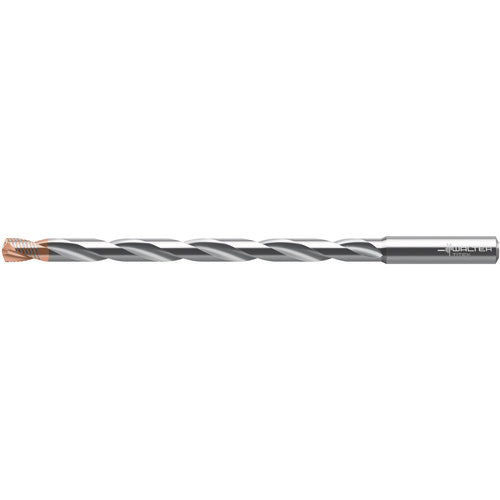

9.3 mm Dia. × 10 mm Shank × 138 mm Flute Length × 180 mm OAL, 12xD, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill
Item #: TT106745525
Brand: Walter-Titex
Model #: 6745525
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.3 mm |
| Shape | Solid Carbide |
| Decimal Equivalent | 0.3661″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.3 mm |
| Tool Type | Solid Carbide |
| Length Group | 12xD |
| Grade | WJ30EJ |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Series/List # | DC170-WJ30EJ |
| Point Angle (SIG) | 140 Degrees |
| Usable Length (LU) | 123 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Length Chip Flute (LCF) | 138 mm |
| Shank Type | Round |
| Overall Length (OAL) | 180 mm |
| Shank Standard | DIN 6535 HA |
