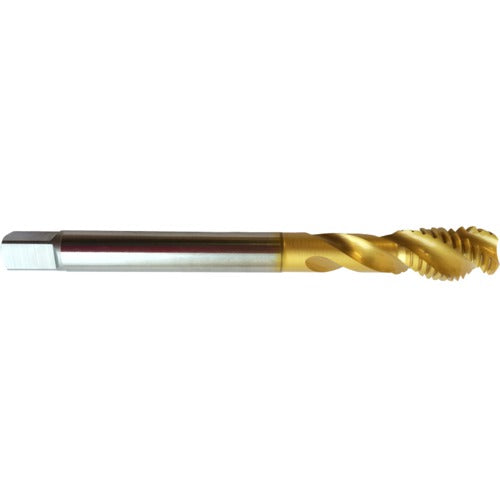

#2 - 64 UNF 3-Flute, Series/List # 4393 Spiral Flute Tap
Item #: GD1443930021840
Brand: Guhring
Model #: 9043930021840
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #2 |
| Flute Count (NOF) | 3 |
| Threads per Inch (TPI) | 64 |
| Flute Helix Angle (FHA) | 40 Degrees |
| Thread Standard | UNF |
| Chamfer | 2-3 Form C |
| Overall Length (OAL) | 1.9685″ |
| Coating | TiN |
| Usable Length (LU) | 0.4409″ |
| Coolant Supply Property (CSP) | without |
| Connection Diameter Machine Side (DCONMS) | 0.141 |
| Series/List # | 4393 |
