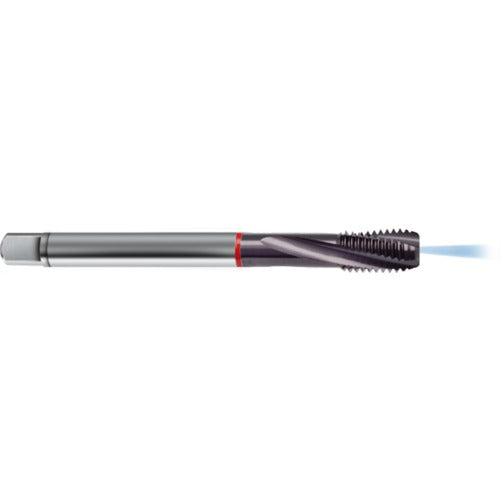

#10 - 24 UNC 3-Flute, Series/List # 4375 Spiral Flute Tap
Item #: GD1443750048260
Brand: Guhring
Model #: 9043750048260
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Flute Count (NOF) | 3 |
| Threads per Inch (TPI) | 24 |
| Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | UNC |
| Chamfer | 1.5-2 Form E |
| Overall Length (OAL) | 2.7559″ |
| Coating | TiCN |
| Usable Length (LU) | 0.9449″ |
| Coolant Supply Property (CSP) | axial |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Series/List # | 4375 |
