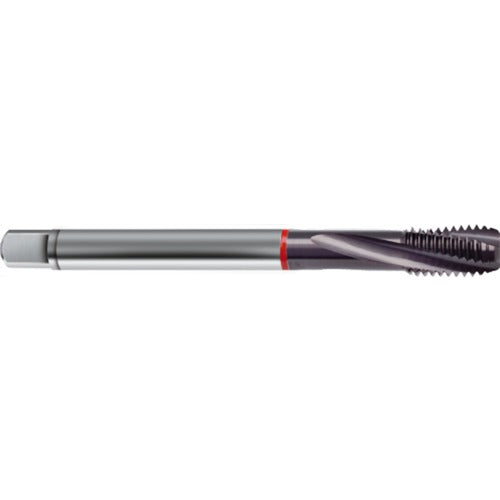

#6 - 40 UNF 3-Flute, Series/List # 4374 Spiral Flute Tap
Item #: GD1443740035050
Brand: Guhring
Model #: 9043740035050
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #6 |
| Flute Count (NOF) | 3 |
| Threads per Inch (TPI) | 40 |
| Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | UNF |
| Chamfer | 1.5-2 Form E |
| Overall Length (OAL) | 2.2047″ |
| Coating | TiCN |
| Usable Length (LU) | 0.709″ |
| Coolant Supply Property (CSP) | without |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Series/List # | 4374 |
